27 Series Nylon Circuit Board Support Post - 4mm Board Hole x 4mm Chassis Hole

Name: 27 Series Nylon Circuit Board Support Post - 4mm Board Hole x 4mm Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-5e560f
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-5e560f

Secure your circuit boards with the 27 Series Nylon Support Post. Durable UL94V-2 Nylon 66 material. RoHS compliant. Temperature range -40 to 185 F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 27 Series Nylon Circuit Board Support Post features dual locking functionality with 4mm mounting holes on both ends, providing secure support for circuit boards. Made of UL94V-2 Nylon 66 material, this post is durable and RoHS compliant. With a temperature range of -40 to 185 F, it ensures reliable performance in various environments. Ideal for mounting applications requiring a 1.6mm panel thickness, this product offers exceptional stability and longevity for your electronic assemblies.

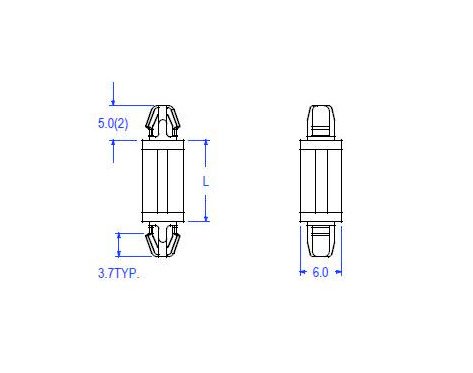

Product Specifications

Specifications Color

Natural

Specifications Dim L

16.0 ± .38 mm

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

4.0 mm

Specifications Pt Panel Thickness

1.6 mm

Specifications Remarks Panel Thickness

Nominal Thickness, Panel thickness is for both ends.

27 Series Nylon Circuit Board Support Post - 4mm Board Hole x 4mm Chassis Hole
