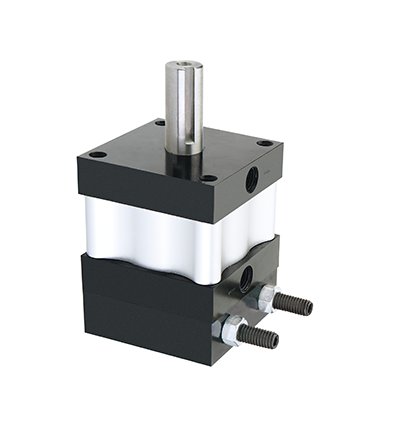

270 Degree Rotary Vane Actuator
270 Degree Rotary Vane Actuator
SKU:ROT-e0ff8a
High-performance 270º Rotary Vane Actuator with 175 in·lb torque, zero backlash, and precise repeatability.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
270 Degree Rotary Vane Actuator
$599.99
Quantity: 1
Claim Your Seller Account
270 Degree Rotary Vane Actuator
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 270 Degree Rotary Vane Actuator by Compact Automation Products offers high-performance rotational output with a maximum torque of 175 in·lb and a rotation angle of 270º. Featuring zero backlash, precise repeatability, and continuous full torque throughout the rotation, this actuator is ideal for applications requiring reliability and efficiency. With options for stop cushioning and position feedback, along with patented urethane seals for extended cycle life, this actuator ensures optimal performance in diverse industrial settings.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
4.4 in
Specifications Maximum Torque
175 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
