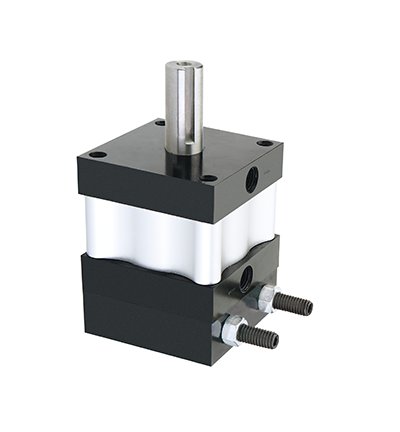

270 Degree Rotary Vane Actuator with 87in·lb Torque
270 Degree Rotary Vane Actuator with 87in·lb Torque
SKU:ROT-2f7402
Experience precision and reliability with our 270° Rotary Vane Actuator. Perfect for high-torque applications.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
270 Degree Rotary Vane Actuator with 87in·lb Torque
$259.99
Quantity: 1
Claim Your Seller Account
270 Degree Rotary Vane Actuator with 87in·lb Torque
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 270 Degree Rotation and 87 Inch-Pound Maximum Torque Turn-Act Rotary Vane Actuator offers unparalleled precision and reliability. Designed by Compact Automation Products, this actuator features a robust aluminum body, patented Urethane seals for long cycle life, and options for stop cushioning and position feedback. With zero backlash, precise repeatability, and continuous full torque throughout rotation, this rotary vane actuator ensures optimal performance. Ideal for a wide range of applications requiring high torque outputs and multi-position capabilities.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
2.9 in
Specifications Maximum Torque
87 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
