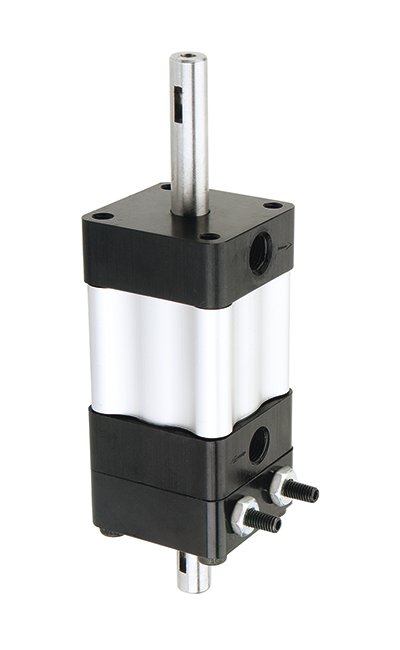

270 Degree Rotational Vane Actuator
270 Degree Rotational Vane Actuator
SKU:ROT-9d5ffd
Enhanced Rotational Vane Actuator for precise control with 270º rotation and 9 in·lb torque, ensuring smooth, maintenance-free performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
270 Degree Rotational Vane Actuator
$299.99
Quantity: 1
Claim Your Seller Account
270 Degree Rotational Vane Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 270 Degree Rotational Vane Actuator from Compact Automation Products offers unparalleled efficiency and precision in rotary motion control. With a maximum torque of 9 in·lb and a rotation angle of 270º, this actuator ensures smooth and consistent performance. Equipped with patented urethane seals, it guarantees a long cycle life and maintenance-free operation. The compact design, zero backlash, and precise repeatability make it ideal for a wide range of industrial applications, delivering continuous full torque throughout the rotation.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)15 base Comp-Act®'s with torque outputs from 9 in.lbs to 100 in.lbs.Rotations 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Smooth RotationPrecise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceActual applications with 25 million cycles and more100's of standard options and modifications
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
1.7 in
Specifications Maximum Torque
9 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
1.63 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1 in
Specifications Shaft Or Table Diameter
0.375 in
Specifications Standard
english_1_1_4
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
