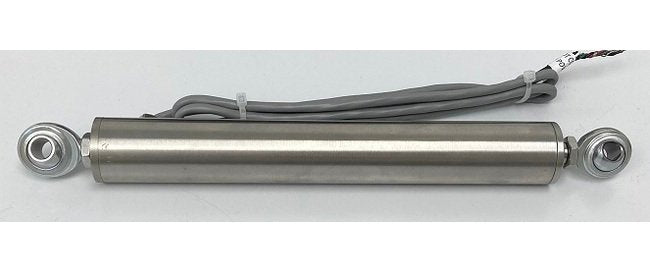

27mm Linear Potentiometer Replacement Sensor, 4in Stroke, 4-20mA Output
27mm Linear Potentiometer Replacement Sensor, 4in Stroke, 4-20mA Output
SKU:LIN-992cce
Enhance system performance with the precise 27mm linear potentiometer replacement sensor - 4in stroke, 4-20mA output.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
27mm Linear Potentiometer Replacement Sensor, 4in Stroke, 4-20mA Output
$79.99
Quantity: 1
Claim Your Seller Account
27mm Linear Potentiometer Replacement Sensor, 4in Stroke, 4-20mA Output
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 27mm Linear Potentiometer Replacement Sensor with a precise 4in stroke and 4-20mA output current is engineered by Alliance Sensors Group to deliver exceptional accuracy (<0.25% of full scale) and resolution (0.025% of full scale). Crafted with a stainless steel body, this sensor operates flawlessly within a temperature range of -20 to 85 ºC. The CE-approved sensor features rod ends, a 27mm outside diameter, and a radial cable type with a 1m cable length. Enhance your system performance with this sensor's high update rate of 300 Hz and ensure reliable and consistent measurements for your applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
