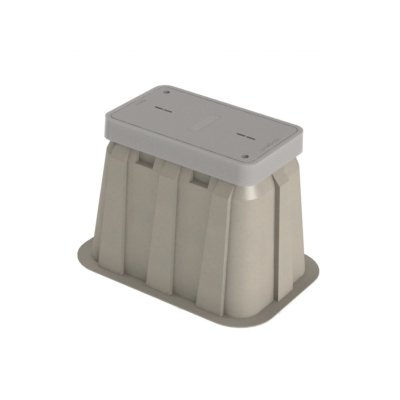

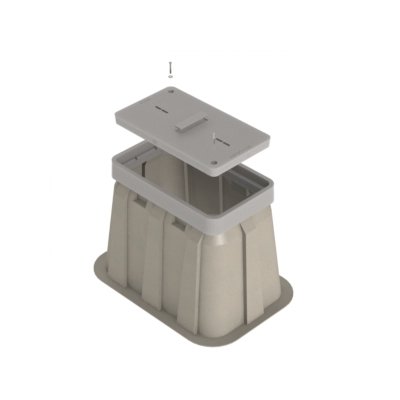

29 in. Fiberglass Concrete Assembly - Durable and Industry-Compliant
29 in. Fiberglass Concrete Assembly - Durable and Industry-Compliant
SKU:HAN-5b5414
High-quality 29 in. Fiberglass Concrete Assembly for durable enclosures, compliant with industry standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
29 in. Fiberglass Concrete Assembly - Durable and Industry-Compliant
$899.99
Quantity: 1
Claim Your Seller Account
29 in. Fiberglass Concrete Assembly - Durable and Industry-Compliant
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 29 in. Inside Depth Fiberglass Concrete Assembly is a robust and reliable solution for institutional and government buyers seeking high-performance enclosures. Made of advanced composite materials, this assembly combines very high strength with a lightweight design, ensuring durability and longevity. Featuring UL classified polymer concrete, a drop-in nameplate, and skid-resistant cover, this assembly is built for easy installation and long-lasting performance. With compliance to key industry standards like WUC 3.6 and ANSI/SCTE 77 2010 - Tier 8, this product is an ideal choice for projects requiring top-tier quality and reliability.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
30 in
Dimensional Attributes Inside Clearance Diameter Bottom
36 in
Dimensional Attributes Inside Clearance Diameter Top
18 1/2 in
Dimensional Attributes Inside Depth
29 in
Features
UL classified polymer concreteDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
93 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
64 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
29 lb
Specifications Diameter
22 in
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 2010 - Tier 8
Specifications Loaded Pallet Weight
975 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
10
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
