29 Series Circuit Board Supports - Teardrop Head, .100 Hole Diameter, Nylon 66
29 Series Circuit Board Supports - Teardrop Head, .100 Hole Diameter, Nylon 66
SKU:01C-113a29
Stabilize circuit boards with the 29 Series Flat Board Support. Nylon 66 construction, teardrop head design, .100 Hole, UL94V-2 compliant.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
29 Series Circuit Board Supports - Teardrop Head, .100 Hole Diameter, Nylon 66
$17.99
Quantity: 1
Claim Your Seller Account
29 Series Circuit Board Supports - Teardrop Head, .100 Hole Diameter, Nylon 66
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

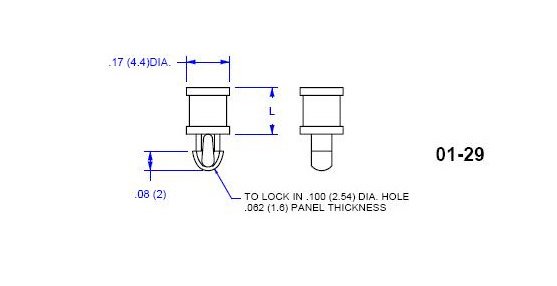

Enhance circuit board stability with the 29 Series Flat Board Support x .100 Chassis Hole. Crafted from Nylon 66, this push spacer features a teardrop head design suitable for a .100-inch hole diameter. With a panel thickness of .064 inches, it ensures secure mounting for circuit boards. Compliant with UL94V-2 standards and RoHS regulations, this support offers durability in temperatures ranging from -40 to 185F. Opt for UL94V-0 material by adding 'X' to the part number for enhanced flame resistance.
Product Specifications
Specifications Dim L
.750 (19.1) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
