29 Series Flat Board Support Push Spacer for .100 Chassis Hole
29 Series Flat Board Support Push Spacer for .100 Chassis Hole
SKU:01C-88c533
Secure your PCBs with the 29 Series Flat Board Support Push Spacer, featuring teardrop head and UL94V-2 material for reliable insulation. Pack of 1000.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
29 Series Flat Board Support Push Spacer for .100 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
29 Series Flat Board Support Push Spacer for .100 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

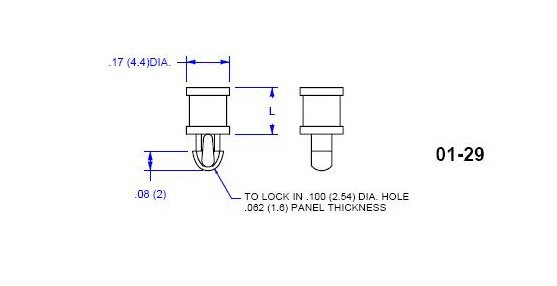

The 29 Series Flat Board Support Push Spacer is designed for secure PCB support with a teardrop head fitting a .100 hole diameter. Made from Nylon 66 UL94V-2 material (UL94V-0 available), it offers reliable insulation and compliance with ASTM D 4066, PA111, and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), this spacer ensures durability in diverse environments. Each pack contains 1000 pieces, providing cost-effective bulk usage for circuit board assembly.
Product Specifications
Specifications Dim L
.125 (3.2) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
