29 Series Flat Board Support Spacer for .100 Chassis Hole
29 Series Flat Board Support Spacer for .100 Chassis Hole
SKU:01C-4d7125
29 Series Flat Board Support Spacer for .100 inch hole - Nylon 66 material, RoHS compliant, pack of 1000 spacers
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
29 Series Flat Board Support Spacer for .100 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
29 Series Flat Board Support Spacer for .100 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

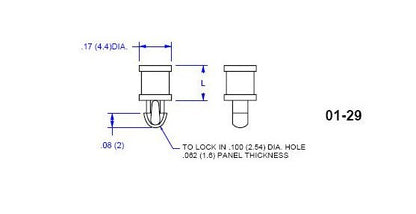

The 29 Series Flat Board Support Spacer is designed for PCB applications, featuring a teardrop head with a .100 inch hole diameter. Made of nylon 66 UL94V-2 material (UL94V-0 available), these spacers are RoHS compliant and can withstand temperatures from -40 to 185F (-40 to 85C). Each pack contains 1000 spacers, ensuring ample supply for your needs. The spacer's dimensions are .563 inches in length, suitable for panel thickness of .064 inches, making it an ideal choice for secure circuit board support and stability.
Product Specifications
Specifications Dim L
.563 (14.3) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
