29 Series Flat Board Support Spacer with .100 Chassis Hole
29 Series Flat Board Support Spacer with .100 Chassis Hole
SKU:01C-ed1fd3
Secure your circuit boards with the 29 Series Flat Board Support Spacer featuring a teardrop head and .100-inch hole diameter. RoHS compliant and durable Nylon 66 UL94V-2 material.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
29 Series Flat Board Support Spacer with .100 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
29 Series Flat Board Support Spacer with .100 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 29 Series Flat Board Support Spacer with a teardrop head and .100-inch hole diameter is designed for securing circuit boards effectively. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this spacer ensures reliable PCB support. It comes in a pack of 1000 and is RoHS compliant, suitable for a temperature range of -40 to 185F (-40 to 85C). The spacer meets ASTM D 4066, PA111 standards, offering a sturdy and stable mounting solution for your electronic components.

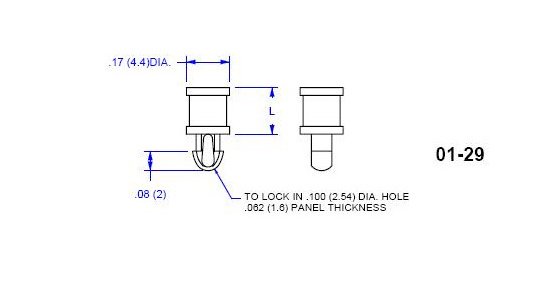

Product Specifications
Specifications Dim L
.062 (1.6) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.064 (1.63) inches (mm)
