Name: 29 Series Flat Board Support Spacer with .100 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-256fbc
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-256fbc

High-quality PCB support spacer with .100 inch hole diameter, RoHS compliant Nylon 66 material, in natural color, ASTM D 4066 and PA111 standards compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

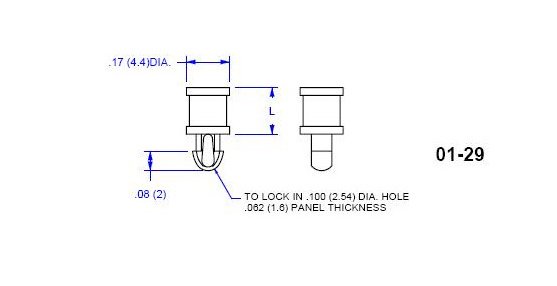

The 29 Series Flat Board Support Spacer is a high-quality push spacer designed for PCB support with a teardrop head and a hole diameter of .100 inches. Made of durable Nylon 66 UL94V-2 material, this spacer is RoHS compliant and can withstand temperatures ranging from -40 to 185F. It comes in a natural color and is packaged in quantities of 1000 per bag. For enhanced safety, UL94V-0 material is also available upon request, denoted by adding 'X' to the end of the part number. Trust in its ASTM D 4066 and PA111 standards compliance for reliable performance in your electronic assemblies.

Product Specifications

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Hole Diameter

.100 (2.54) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.064 (1.63) inches (mm)
