29 Series Flat Board Support with .100 Chassis Hole
29 Series Flat Board Support with .100 Chassis Hole
SKU:01C-6fa242
Securely mount circuit boards with 29 Series Flat Board Support featuring teardrop head, .100-inch hole, and Nylon 66 UL94V-2 material. Pack of 1000, RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
29 Series Flat Board Support with .100 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
29 Series Flat Board Support with .100 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

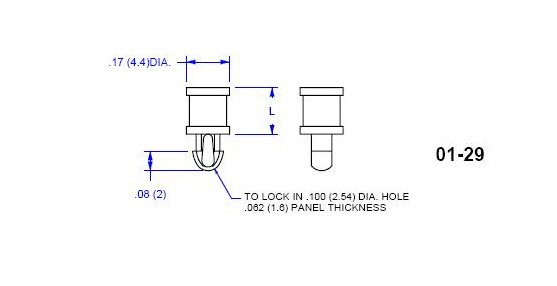

The 29 Series Flat Board Support is a versatile push spacer (PCB Support) designed with a teardrop head and a .100-inch hole diameter, providing secure mounting for circuit boards. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this pack of 1000 spacers ensures quality and durability. With ASTM D 4066 and PA111 compliance, RoHS certification, and a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for various applications requiring precise and reliable board mounting solutions.
Product Specifications
Specifications Dim L
.209 (5.3) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
