29 Series Flat Board Support with Teardrop Head for .100 Chassis Hole
29 Series Flat Board Support with Teardrop Head for .100 Chassis Hole
SKU:01C-a3c7e9
Secure PCBs with precision using the 29 Series Flat Board Support - Teardrop head design, .100 inch hole diameter, and Nylon 66 UL94V-2 material for durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
29 Series Flat Board Support with Teardrop Head for .100 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
29 Series Flat Board Support with Teardrop Head for .100 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 29 Series Flat Board Support with Teardrop Head is a premium solution for securing printed circuit boards (PCBs) with precision. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this push spacer ensures sturdy support for PCBs in various applications. With a teardrop head design and a .100 inch hole diameter, these supports are easy to install and provide reliable stability. RoHS compliant and meeting ASTM D 4066 and PA111 standards, these supports guarantee safety and durability. With a temperature range of -40 to 185F (-40 to 85C), they are suitable for a wide range of environments, making them an ideal choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

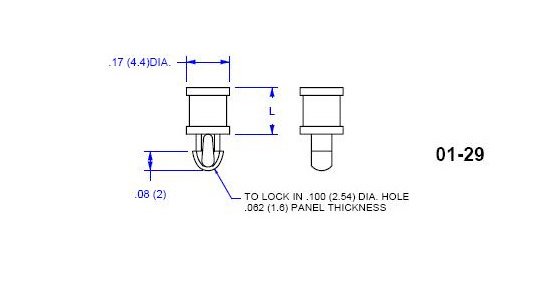

Product Specifications
Specifications Dim L
.813 (20.6) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
