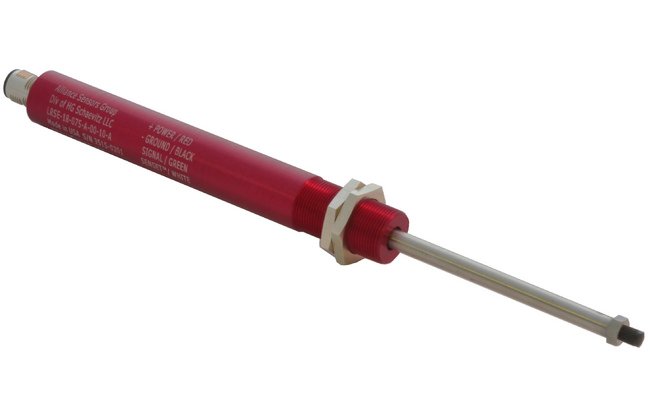

2in Stroke 4-20mA Spring Loaded Linear Sensor - Aluminum Body
2in Stroke 4-20mA Spring Loaded Linear Sensor - Aluminum Body
SKU:SPR-27e57d
Highly precise 2in stroke aluminum linear sensor with 4-20mA output current, CE approved, ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2in Stroke 4-20mA Spring Loaded Linear Sensor - Aluminum Body
$129.99
Quantity: 1
Claim Your Seller Account
2in Stroke 4-20mA Spring Loaded Linear Sensor - Aluminum Body
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 Inch Stroke and 4 to 20 Milliampere Output Current Aluminum Spring Loaded Linear Sensor by Alliance Sensors Group offers high precision and durability for industrial applications. With a temperature range of -20 to 85 ºC, <0.25% linearity, and CE approval, this sensor ensures accurate and reliable performance. The aluminum body construction, 1m cable termination, and 300 Hz update rate make it ideal for demanding environments. Achieve superior measurement accuracy and efficiency with this top-quality spring-loaded sensor.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
2 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
