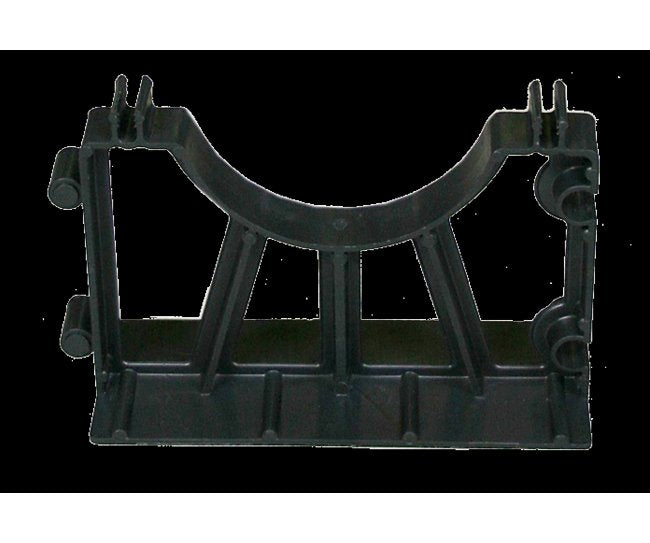

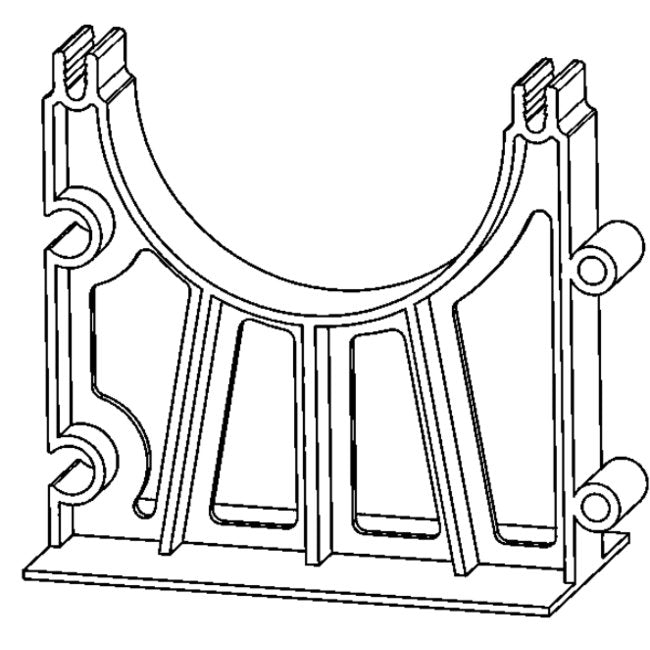

The 2x1 1/2 Base Spacer is a crucial component for securing underground ducts with its modular interlocking design. This single base spacer ensures seamless assembly and prevents separation during backfilling operations. With a sturdy construction, this spacer eliminates the need for additional spacers as top caps, providing a cost-effective solution. It simplifies duct bank alignment, offers fast field assembly, and ensures a secure connection without the need for banding. Perfect for both EB and DB installations, this spacer promotes efficient duct separation, making it an essential choice for underground construction projects.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
2 in
Specifications Pipe Separation
1 1/2 in
Specifications Short Description
GSB2X150151 SPACER BASE 2X1.5
Specifications Standard Pack
250
Specifications Type
Single Base Spacer
Specifications Weight
29 lb
