Ensure secure and efficient alignment of PVC conduit with the 2x3 Underground Duct Spacer Base.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

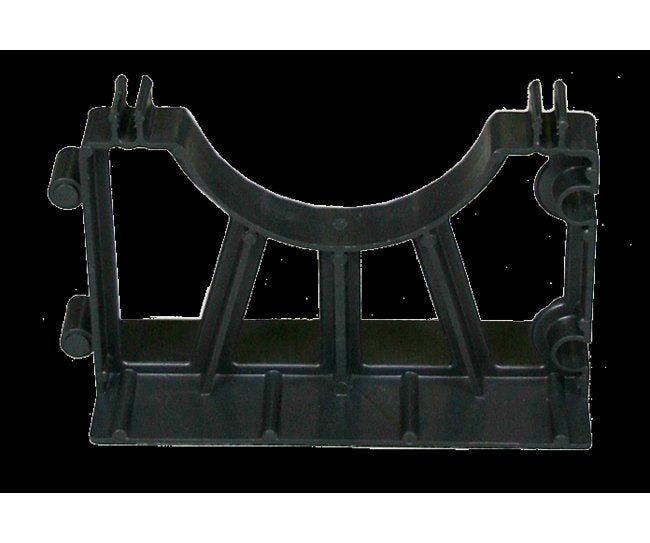

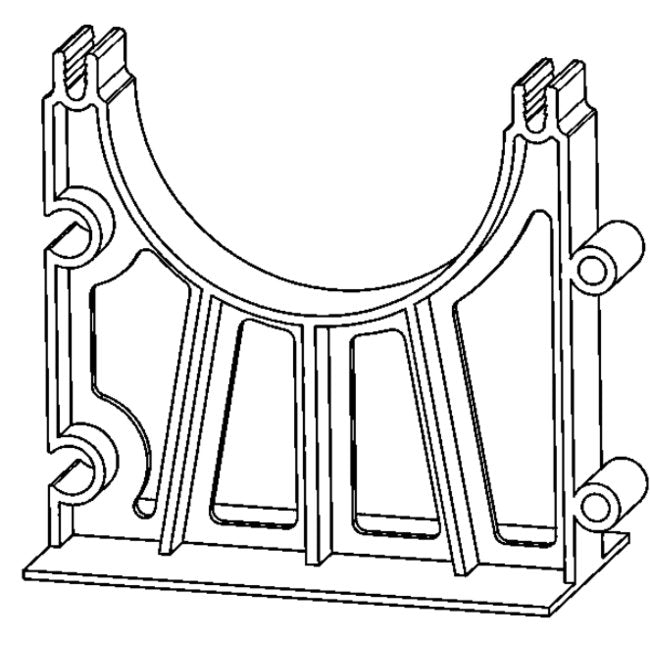

The 2x3 Underground Duct Spacer Base is a crucial component for securing duct banks during backfilling. Designed for PVC conduit systems, this spacer system features modular elements that interlock securely to prevent duct separation. With a completely locked-in construction, no banding is required, making field assembly fast and uncomplicated. Only two components, the base, and intermediate spacers are needed for a solid support structure. These spacers snap together vertically and slide together horizontally, ensuring easy installation even in challenging field conditions. To meet procurement standards, this product ensures precise alignment of duct bank sections, prevents separation, and accurately separates ducts using the Vertical-lok spacer for added stability.

Product Specifications

Features

Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.

Specifications Pipe Diameter

2 in

Specifications Pipe Separation

3 in

Specifications Short Description

GSB2X300155 SPACER BASE 2 X 3

Specifications Standard Pack

225

Specifications Type

Single Base Spacer

Specifications Weight

30.0 lb
