3 1/2'' Standard Brass Companion Flange
3 1/2'' Standard Brass Companion Flange
SKU:FIT-0ff5a6
High-quality 3 1/2'' brass companion flange for industrial applications, meets Federal/DoD standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3 1/2'' Standard Brass Companion Flange
$29.99
Quantity: 1
Claim Your Seller Account
3 1/2'' Standard Brass Companion Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Brass Companion Flange in 3 1/2 inches size is a durable and reliable fitting designed for industrial applications. With an O.D of 8 1/2 inches, bolt circle diameter of 7 inches, and 8 bolts for secure installation, this flange ensures a tight seal for fluid conveyance systems. The brass construction offers corrosion resistance and long-term performance. Manufactured to meet Federal/DoD procurement standards, this flange is ideal for government and institutional use.

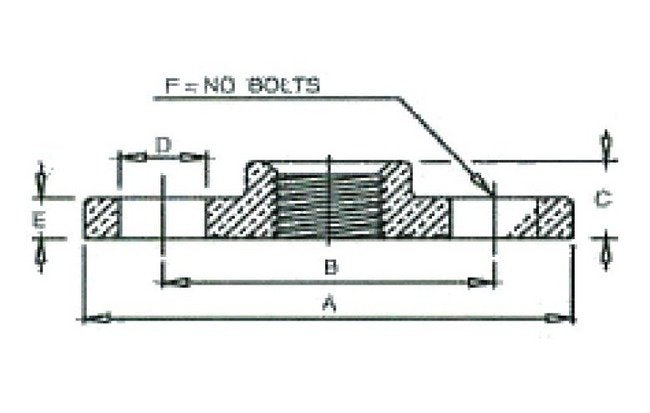

Product Specifications
Specifications Diameter Of Bolt Circle B
7
Specifications Diameter Of Bolt Hole D
3/4
Specifications Flange Thickness E
11/16
Specifications Height C
1 1/4
Specifications No Of Bolts F
8
Specifications Od Of Flange A
8 1/2
Specifications Size
3 1/2 inches
