3.125 Inch Standard Chip Deflector

Name: 3.125 Inch Standard Chip Deflector
Brand: Bermar Associates, Inc.
SKU: STA-d73d33
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-d73d33

Keep machine ways safe with our durable 3.125 Inch Standard Chip Deflector made of 16 gauge cold-rolled steel. Ideal for hot chip applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

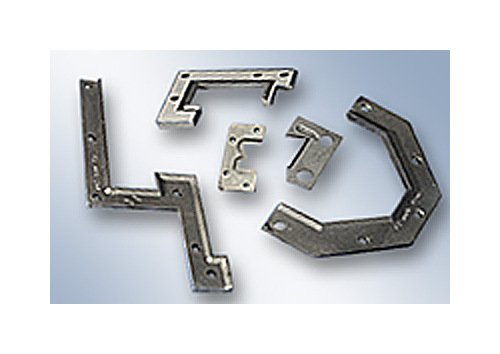

The 3.125 Inch Standard Chip Deflector from Bermar Associates, Inc. is expertly crafted from 16 gauge cold-rolled steel to protect machine ways and way wipers from metal chip damage. Preformed to fit specific way wipers, this chip deflector offers superior strength and durability, ideal for hot chip applications. With the option for custom sizes and hole patterns, along with galvanized or cold-rolled steel construction, this deflector ensures reliable protection in industrial settings.

Product Specifications

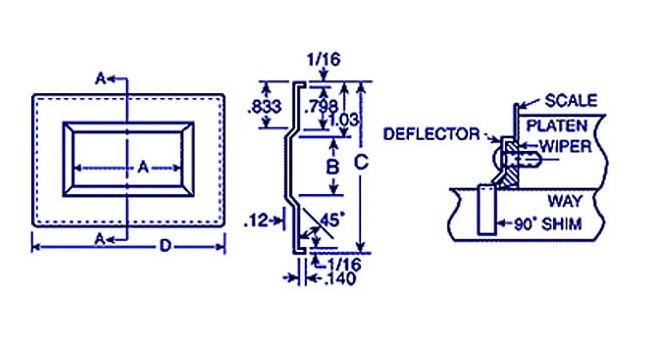

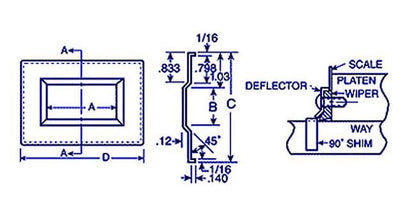

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

3.125 in

Specifications Dimension B

1.375 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
