3/16 Inch Stainless Steel Flanged Collar
3/16 Inch Stainless Steel Flanged Collar
SKU:FLA-f21d7c
High-quality 3/16" Stainless Steel Flanged Collar for secure and corrosion-resistant fastening in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/16 Inch Stainless Steel Flanged Collar
$29.99
Quantity: 1
Claim Your Seller Account
3/16 Inch Stainless Steel Flanged Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

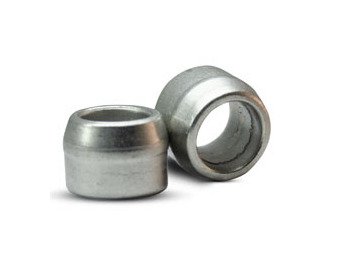

The 3/16 Inch Stainless Steel Flanged Collar by Ornit is a durable and reliable solution for fastening applications. Crafted from high-quality stainless steel with a zinc finish, this collar provides exceptional strength and corrosion resistance. With precise dimensions ranging from 0.187 to 0.196 inches in diameter and 0.280 to 0.250 inches in length, it ensures a secure fastening grip. The flanged head shape allows for easy installation and maintenance, making it ideal for industrial, construction, and machinery applications.

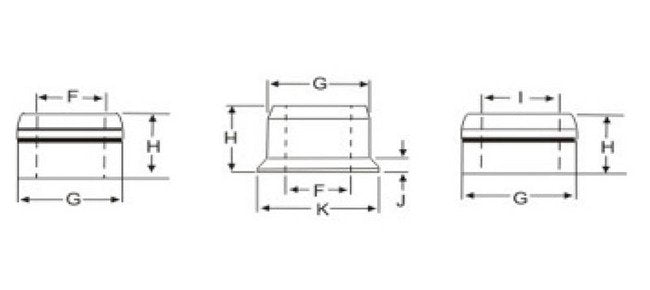

Product Specifications
Note Note
When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
3/16 in
Technical Specs Diameter F
0.187 to 0.196 in
Technical Specs Finish
Zinc
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.280 - 0.250 in
Technical Specs Material
Stainless Steel
Technical Specs Maximum Dimension J
0.062 - 0.031 in
Technical Specs Maximum Dimension K
0.391 - 0.359 in
Technical Specs Maximum Hole Diameter
0.311 in
Technical Specs Minimum Hole Diameter
0.304 in
Technical Specs Weight Per 1000 Pieces
1.32 kg
