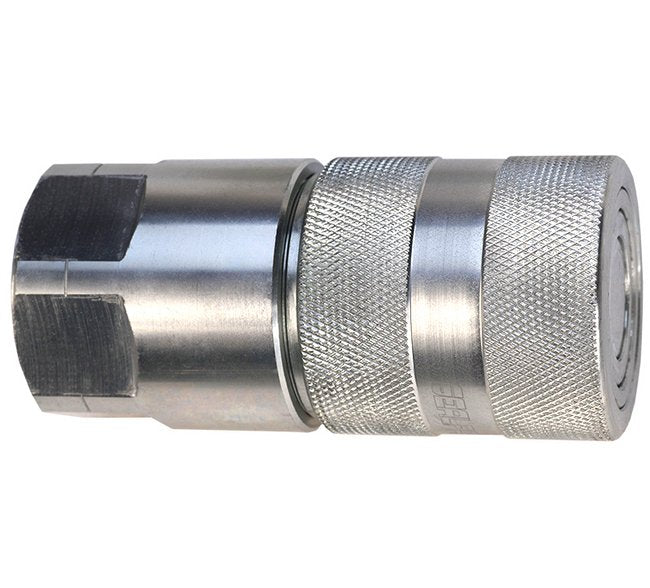

3.24in Carbon Steel Flat Face Hydraulic Socket
3.24in Carbon Steel Flat Face Hydraulic Socket
SKU:COU-8a3ccf
Durable carbon steel hydraulic socket with ISO 16208 compliance for secure, leak-free connections in industrial settings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3.24in Carbon Steel Flat Face Hydraulic Socket
$49.99
Quantity: 1
Claim Your Seller Account
3.24in Carbon Steel Flat Face Hydraulic Socket
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3.24 Inch Carbon Steel Flat Face Quick Connect Hydraulic Socket is a robust hydraulic socket designed to meet ISO 16208 standards. Constructed from durable carbon steel with Buna-N seals and zinc plating, this socket ensures reliable performance in hydraulic systems. With an overall length of 3.24 inches, 3625 psi working pressure, and -4 to +176 ºF working temperature range, it is ideal for industrial applications requiring secure and leak-free connections. The no-drip valve design minimizes fluid loss, enhancing safety and environmental cleanliness.
Product Specifications
Applications
Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
3/4 in
Specifications Connection Type
Female | Socket
Specifications End Size
3/4 in. Female NPT
Specifications Hex Size
34 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
54 mm | 2.12 in
Specifications Overall Length
82.5 mm | 3.24 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating
Specifications Working Pressure
3625 psi
Specifications Working Temperature Range
-4 to +176 ºF
