3.2mm Aluminum/Stainless Steel Dome Head Rivet
3.2mm Aluminum/Stainless Steel Dome Head Rivet
SKU:UFI-a346be
Durable 3.2mm Aluminum/Stainless Steel Dome Head Rivet with superior strength and corrosion resistance for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3.2mm Aluminum/Stainless Steel Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
3.2mm Aluminum/Stainless Steel Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

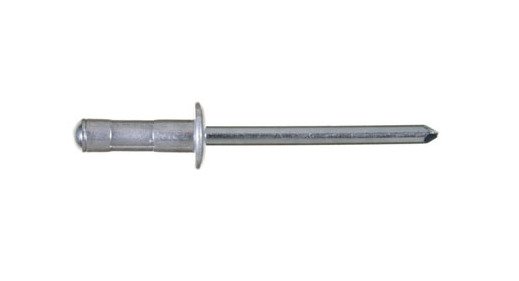

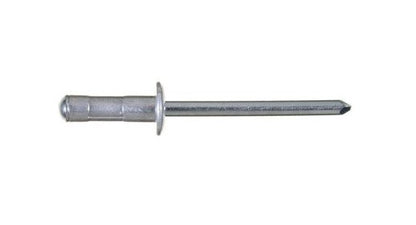

The 3.2mm Aluminum/Stainless Steel Dome Head Rivet from our U-Fix line is a durable and reliable fastening solution suitable for a wide range of applications. With a body made of Aluminum Alloy ALmg 2.5 and a Stainless Steel AISI 430/434 or equivalent mandrel, this rivet ensures superior strength and corrosion resistance. Measuring 12.7mm in body length and capable of gripping ranges from 5.5mm to 9.5mm, it offers exceptional shear and tensile forces of 75kgf and 104kgf respectively. Trust in its precise engineering and high-quality finish for your projects.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
