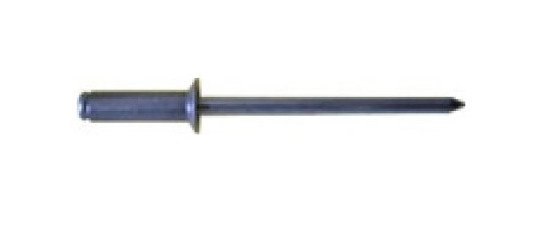

3.2mm Open End Countersunk Blind Rivet
3.2mm Open End Countersunk Blind Rivet
SKU:OPE-338b1b
Premium 3.2mm Countersunk Blind Rivet for secure and durable fastening applications. Meets industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
3.2mm Open End Countersunk Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
3.2mm Open End Countersunk Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

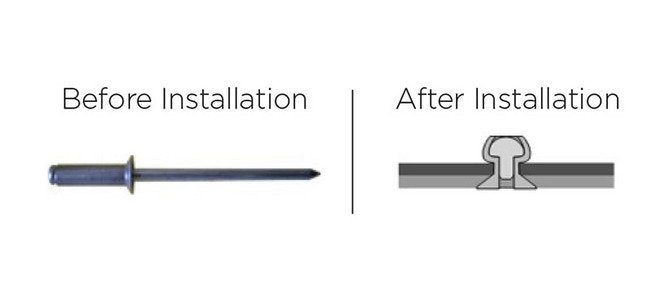

The 3.2mm Open End Countersunk Blind Rivet is a high-quality fastening solution suitable for various applications. With a body length of 12.0mm and a durable aluminum alloy body material, it offers excellent grip range and nominal forces of 75kgf shear force and 100kgf tensile force. The zinc-plated chromium VI free mandrel ensures corrosion resistance, making it ideal for long-lasting and secure installations. This rivet meets stringent industry standards, making it a reliable choice for both consumer and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.7 mm | 0.224 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
8.5 mm | 0.335 in
Nominal Dimensions Minimum Grip Range
6.5 mm | 0.256 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
