3.2mm Steel Dome Blind Rivet
3.2mm Steel Dome Blind Rivet
SKU:OPE-b632c9
High-strength 3.2mm Steel Dome Blind Rivet for secure fastening in a range of 10.5-12.5mm. Nominal shear force: 130 kgf, Tensile force: 175 kgf.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
3.2mm Steel Dome Blind Rivet
$39.99
Quantity: 1
Claim Your Seller Account
3.2mm Steel Dome Blind Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

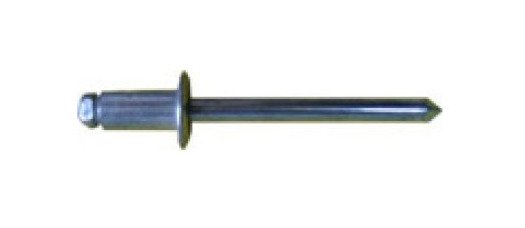

The 3.2mm Diameter and 16.0mm Body Length Open End Steel Dome Blind Rivet by Ornit is crafted from Low Carbon Steel, meeting industry standards. With a Natural finish and Zinc Plated Chromium (Cr) VI Free mandrel, it offers a nominal shear force of 130 kgf and a nominal tensile force of 175 kgf, ensuring secure fastening in a grip range of 10.5mm to 12.5mm. Perfect for structural applications.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.01 mm | 0.079 in
Nominal Dimensions Maximum Grip Range
12.5 mm | 0.492 in
Nominal Dimensions Minimum Grip Range
10.5 mm | 0.413 in
Nominal Forces Nominal Shear Force
130 kgf | 286 lbf
Nominal Forces Nominal Tensile Force
175 kgf | 385 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
