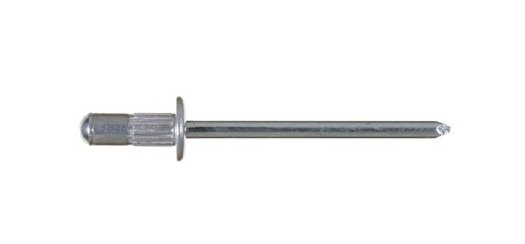

3.2mm U-Fix Aluminum/Stainless Steel X-Large Head Rivet
3.2mm U-Fix Aluminum/Stainless Steel X-Large Head Rivet
SKU:UFI-731771
High-strength 3.2mm Aluminum/Stainless Steel Rivet for secure and durable fastening. Meets industrial standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3.2mm U-Fix Aluminum/Stainless Steel X-Large Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
3.2mm U-Fix Aluminum/Stainless Steel X-Large Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3.2mm U-Fix Aluminum/Stainless Steel X-Large Head Rivet is a durable and reliable fastening solution suitable for a wide range of applications. Crafted with Aluminum Alloy ALmg 2.5 body material and a Zinc Plated Chromium VI-Free Carbon Steel mandrel, it offers exceptional strength and corrosion resistance. With a 6.4mm head diameter and a maximum grip range of 6.4mm, this rivet ensures secure connections. Meeting stringent industrial standards, this rivet guarantees high performance and long-lasting results.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.4 mm | 0.134 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Rolled Rivet
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
