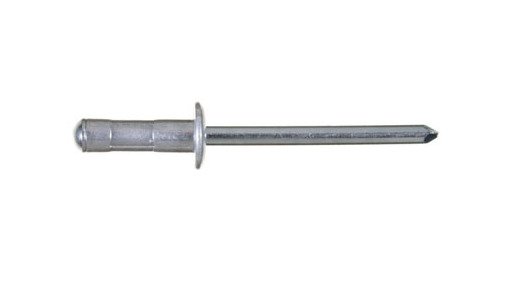

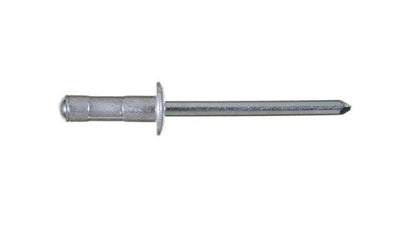

3.2mm x 11.1mm U-Fix Dome Head Rivet
3.2mm x 11.1mm U-Fix Dome Head Rivet
SKU:UFI-d1f86f
High-quality 3.2mm x 11.1mm U-Fix Dome Rivet for secure and durable fastening in various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
3.2mm x 11.1mm U-Fix Dome Head Rivet
$45.99
Quantity: 1
Claim Your Seller Account
3.2mm x 11.1mm U-Fix Dome Head Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3.2mm Diameter and 11.1mm Body Length U-Fix Dome Head Rivet is a high-quality fastening solution suitable for a wide range of applications. With a body made of Aluminum Alloy ALmg 2.5 and a stainless steel mandrel, this rivet offers exceptional strength and durability. Its dome head design ensures a secure grip and excellent finishing. Meeting stringent industry standards, this rivet provides reliable performance in demanding environments, making it ideal for both consumer and institutional procurements.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
