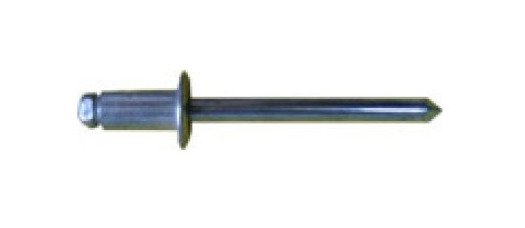

3.2mm x 8.0mm Open End Steel Dome Blind Rivet
3.2mm x 8.0mm Open End Steel Dome Blind Rivet
SKU:OPE-fdfdce
High-strength 3.2mm x 8.0mm Steel Dome Blind Rivet for secure fastening. Meets industry standards for reliability.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
3.2mm x 8.0mm Open End Steel Dome Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
3.2mm x 8.0mm Open End Steel Dome Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3.2mm Diameter and 8.0mm Body Length Open End Steel Dome Blind Rivet by Ornit offers exceptional strength and durability. Made of Low Carbon Steel, SAE 1006 or Equivalent, and designed with a Zinc Plated Chromium VI Free finish, this rivet ensures secure fastening in various applications. With a Nominal Shear Force of 130 kgf and Nominal Tensile Force of 175 kgf, it meets high industry standards for reliability and performance.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.01 mm | 0.079 in
Nominal Dimensions Maximum Grip Range
4.5 mm | 0.177 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
130 kgf | 286 lbf
Nominal Forces Nominal Tensile Force
175 kgf | 385 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
