3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel Rivet
3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel Rivet
SKU:UFI-1ecaf2
Premium 3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel Rivet for superior fastening.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel Rivet
$59.99
Quantity: 1
Claim Your Seller Account
3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

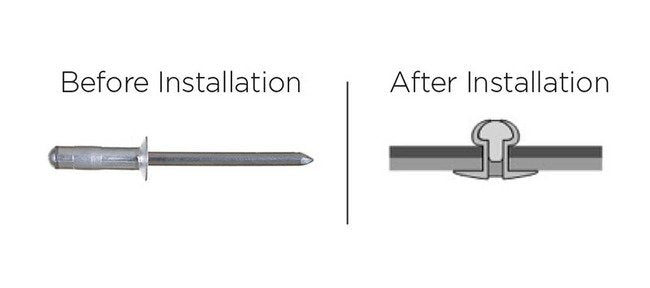

The 3.2mm x 9.7mm U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet by Ornit is a high-quality fastening solution perfect for various applications. The rivet features a durable Aluminum Alloy ALmg 2.5 body with a Stainless Steel AISI 430/434 mandrel, ensuring strength and corrosion resistance. With a 120-degree countersunk head design, it provides a flush finish post-installation. Meeting rigorous industry standards, this rivet offers a nominal shear force of 70 kgf and a nominal tensile force of 93 kgf, making it ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
9.7 mm | 0.382 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.35 mm | 0.211 in
Nominal Dimensions Head Thickness
0.85 mm | 0.33 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
2.4 mm | 0.094 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
93 kgf | 204.6 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
