3-3/16 Inch (in) Width and 3-5/8 Inch (in) Length Cable Rack Insulator
3-3/16 Inch (in) Width and 3-5/8 Inch (in) Length Cable Rack Insulator
SKU:CAB-7c4ede
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3-3/16 Inch (in) Width and 3-5/8 Inch (in) Length Cable Rack Insulator
$49.99
Quantity: 1
Claim Your Seller Account
3-3/16 Inch (in) Width and 3-5/8 Inch (in) Length Cable Rack Insulator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Cable rack porcelain insulators with supporting hardware are commonly employed for cable mounting and guide support in manholes, cable trenches or sub stations. The cable rack system minimizes cable tilling, swaying or drooping.
Product Specifications
Additional Information

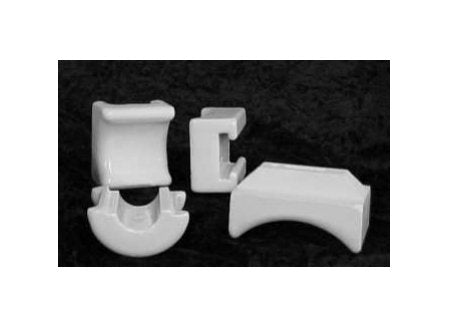

Akron Porcelain & Plastics Company (APP) offers one of the most comprehensive lines of cable rack insulators with over 50 different models available. The porcelain cable rack insulators are designed to rest on a cable rack and have no sharp edges or corners and are highly resistant to chipping or breakage. There is a variety of galvanized steel mounting hardware including channel back, drilled and slotted supporting up to 4 insulators. Full 360-degree cable support insulators (APP stock No. 1211) can also be provided with a cable support-mounting bracket.Dimension and sizing detail for the underground cable insulators and standard mounting hardware follow on subsequent pages. APP encourages your inquiry for special designs and requirements.Akron Porcelain & Plastics Company has an extensive inventory of standard molded ceramic products for use in foundry and electrical applications. These products include extruded tubes and molded pouring cups for the investment casting industry. In addition, we maintain a complete line of strainer cores for use in the investment and sand casting industries as well as Cerama-Nut® Wire Connectors for electrical terminations (UL approved size is available).
Note
Underground Cable Insulators are made of dry process porcelain, white glaze is standard and brown glaze is available.

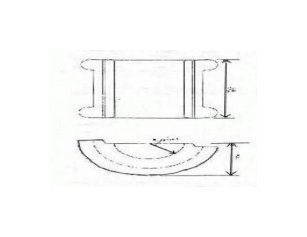

Specifications Length
3-5/8 in
Specifications Package Type
Carton
Specifications Pieces Per Carton
50
Specifications Radius
3/4 in. Pairs
Specifications Weight Per Carton
25 lb
Specifications Width
3-3/16 in
