3/32 Inch (in) Bare Diameter, 1/8 Inch (in) Coated Diameter, and 7 x 19 Nylon Coated Wire Cable

Name: 3/32 Inch (in) Bare Diameter, 1/8 Inch (in) Coated Diameter, and 7 x 19 Nylon Coated Wire Cable
Brand: Sandin Manufacturing
SKU: 7X1-c21002
Price: 49.99 USD
Availability: OutOfStock

SKU:7X1-c21002

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

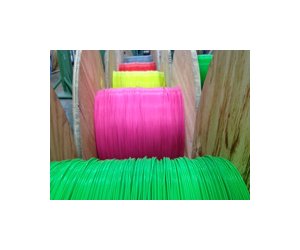

Sandin Manufacturing extrudes a variety of jacketing types for strand, aircraft cable and wire rope. We manufacture custom coatings to specific diameters in a wide range of colors to meet your specific demands. Adding a jacket to your cable or wire rope provides extra durability and helps increase the lifespan of the cable or wire rope. Sandin Manufacturing has the capability to extrude bare cable from 0.014" diameter to 0.625" diameter.Coated cable is available in various types of nylon, UV resistant vinyl, polyethylene, polypropylene, and hytrel. Custom color matching is available for the different coatings.

Product Specifications

Features

Nylon is suitable for applications involving pulleysExcellent coating for exercise equipmentVery durableHarder and tougher than VinylApplications with high cycle countsGood chemical resistant characteristics

Note

Custom color matching available.If you don't see exactly what you are looking for please don't hesitate to contact one of our helpful technical sales representatives for assistance.

Specifications Bare Cable Diameter

3/32 in

Specifications Coated Cable Diameter

1/8 in

Specifications Coating

Galvanized

Specifications Conductor Material

Stainless Steel

Specifications Construction

7 x 19

Specifications Galvanized Nylon Weight Per 1000 Feet Ft Length

20 lb

Specifications Industry Standards

Commercial Grade RR-W-410

Specifications Insulation Material

Nylon

Specifications Minimum Galvanized Rated Breaking Strength

1000 lb

Specifications Minimum Stainless Steel Rated Breaking Strength

920 lb

Specifications Stainless Steel Nylon Weight Per 1000 Feet Ft Len

20 lb

3/32 Inch (in) Bare Diameter, 1/8 Inch (in) Coated Diameter, and 7 x 19 Nylon Coated Wire Cable
