Durable 3/4" 90° Zinc-Plated Steel Fitting with IP66/67 Rating & Hazardous Location Approval. UL Listed & CSA Certified.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
3/4
$14.99
Quantity: 1
Claim Your Seller Account
3/4
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/4" 90° Steel Sealtite Fitting is a durable and corrosion-resistant zinc-plated steel fitting designed with a five-piece construction for reliable performance. With a gland nut, sealing ring, high-tensile grounding ferrule, insulated throat, and body included, this fitting ensures secure connections while protecting against moisture and oils. Easy to install with standard liquid-tight conduit, it is IP66/67 rated when used with approved conduit, suitable for both exposed and concealed locations, and approved for hazardous settings. Compliant with UL Standard 514B and CSA C22.2, this fitting is recommended for applications requiring adherence to NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2 standards. UL Listed, CSA certified, RoHS, and WEEE compliant.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

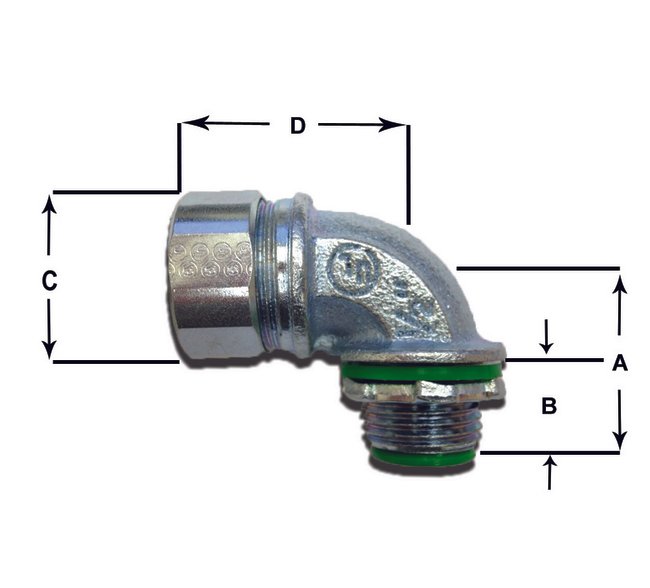

Specifications Connector Type
90°
Specifications Dimension A
1.50 in
Specifications Dimension B
0.59 in
Specifications Dimension C
1.43 in
Specifications Electrical Trade Size
3/4 in
Specifications Ko Size
3/4 in
Specifications Thread Type
NPT
Specifications Type
Zinc Plated Steel
