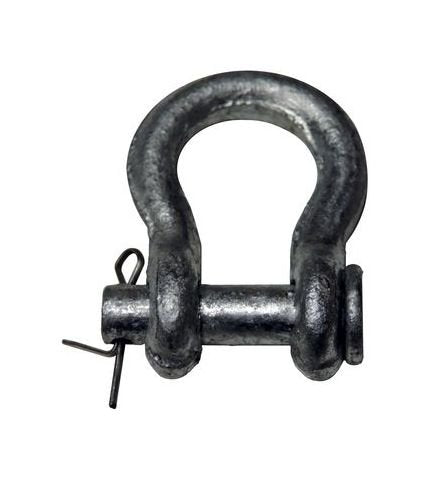

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

SKU:WIR-05c314

Heavy-duty 3/4 Anchor Shackle for superior strength and safety on wire rope loops. Conforms to Federal specifications. Ideal for lifting and towing applications.

Regular price $57.99
Regular price Sale price $57.99
Sale

Initiate Order

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

$57.99

Quantity: 1

Claim Your Seller Account

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

$57.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4 Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged is a heavy-duty shackle designed to meet the highest standards of safety and performance. This shackle conforms to Federal Specification RR-C-271D, Type IV A, Grade A, Class 1, ensuring reliability in lifting and towing applications. With a working load limit of 4 3/4 tons and a 6 times ultimate load capacity, this shackle offers exceptional strength and durability. The alloy pin, quenched and tempered construction, and precise dimensions make it a reliable choice for industrial and institutional use.

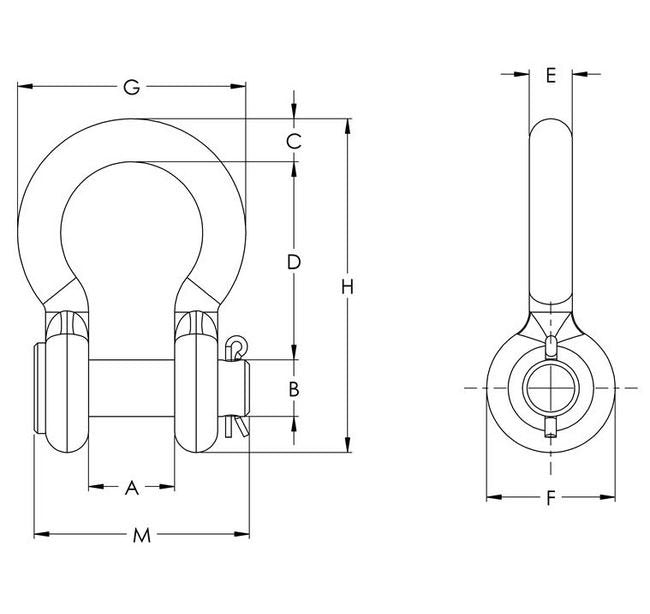

Product Specifications

Specifications A In
1.25
Specifications B In
0.88
Specifications C In
0.81
Specifications D In
2.81
Specifications E In
0.75
Specifications F In
1.81
Specifications G In
3.5
Specifications H In
4.97
Specifications M In
3.97
Specifications Nominal Size In
3/4
Specifications Weight Lbs
2.32
Specifications Wll Tons
4 3/4
CAGE
0T9L4
NAICS
332999
PSC
5340
