3/4" Bolt Type Shackles Hot Dip Galvanized - 4.75 Ton WLL

Name: 3/4" Bolt Type Shackles Hot Dip Galvanized - 4.75 Ton WLL
Brand: Lexco Cable Manufacturing
SKU: WIR-7a5a5b
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-7a5a5b

Heavy-duty 3/4" Bolt Type Shackles Hot Dip Galvanized - 4.75 Ton WLL, Ideal for lifting or towing

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

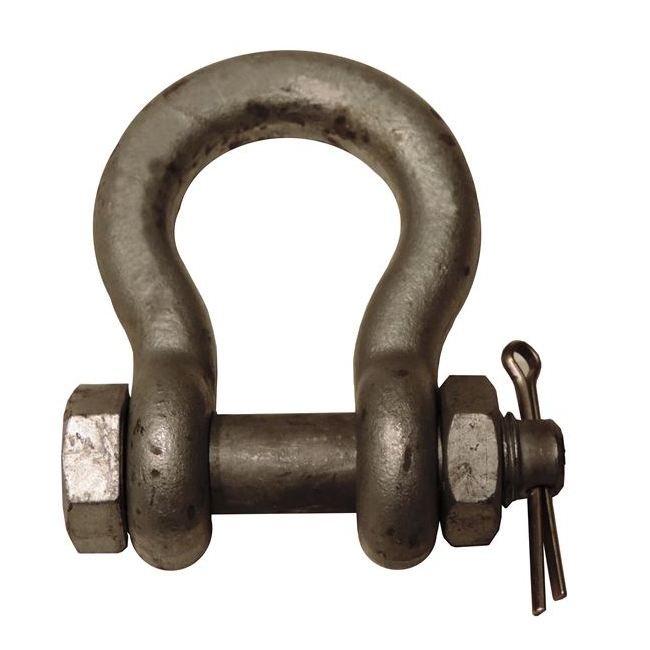

The 3/4" Bolt Type Shackles are designed for heavy-duty lifting applications, conforming to Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3. These shackles are quenched and tempered with an alloy pin for enhanced durability. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, they ensure reliable performance. Ideal for wire rope loops in lifting or towing operations.

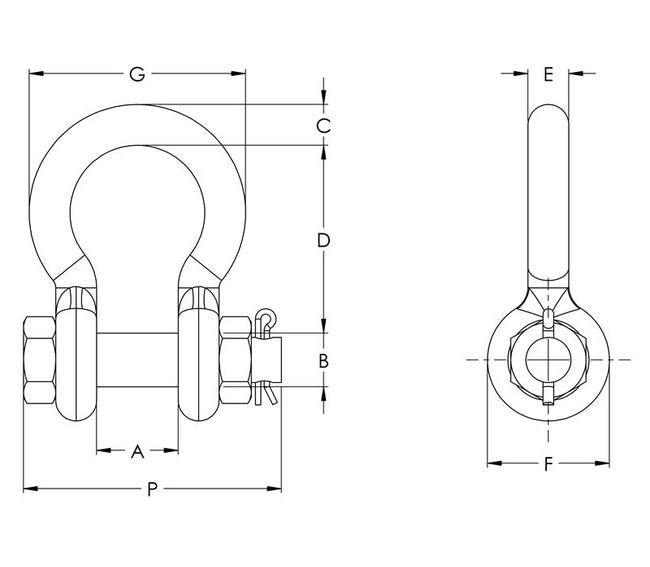

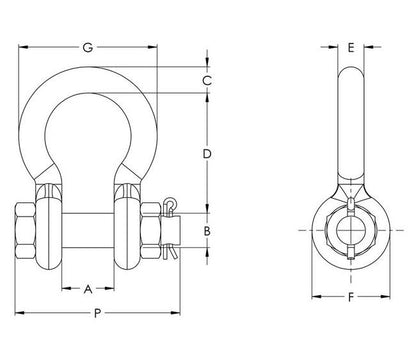

Product Specifications

Specifications A In

1.25

Specifications B In

0.86

Specifications Cross Reference

SAS34

Specifications C In

0.81

Specifications D In

2.81

Specifications E In

0.75

Specifications F In

1.81

Specifications G In

3.5

Specifications Nominal Size In

3/4

Specifications P In

4.07

Specifications Weight Lbs

2.72

Specifications Wll Tons

4.75

CAGE

0T9L4

NAICS

332722

PSC

5306

3/4" Bolt Type Shackles Hot Dip Galvanized - 4.75 Ton WLL
