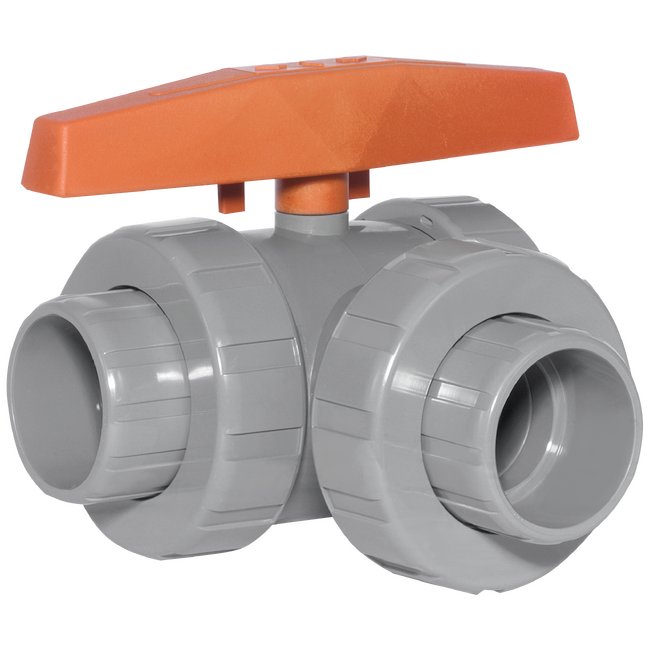

3/4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections

Name: 3/4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-924143
Price: 49.99 USD
Availability: OutOfStock

SKU:TRU-924143

High-quality 3/4" CPVC 3-Way Lateral True Union Ball Valves with EPDM o-rings and flanged end connections. Durable and versatile for efficient flow control.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4" CPVC 3-Way Lateral True Union Ball Valves with EPDM o-rings and flanged end connections are versatile and reliable. These valves allow seamless diversion of flow from the center port to either the left or right ports, eliminating the need for an OFF position. Constructed with high-quality CPVC body material and durable EPDM seals, these valves ensure long-lasting performance. With a Cv Factor of 7, they are rated @ 150 PSI, meeting stringent industry standards for pressure regulation. Sizes ranging from 1/2" to 6" cater to diverse applications, making them ideal for institutional and government procurement needs.

Product Specifications

Specifications A

2.63 in | 66.80 mm

Specifications B

2.56 in | 65.02 mm

Specifications Body Material

CPVC

Specifications C

3.57 in | 90.68 mm

Specifications Cv Factor

Specifications E

3.50 in | 88.90 mm

Specifications End Connection

Flanged

Specifications F

4.60 in | 116.84 mm

Specifications G

7.50 in | 190.50 mm

Specifications H

2.93 in | 74.42 mm

Specifications Seals

EPDM

Specifications Size

3/4"

3/4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
