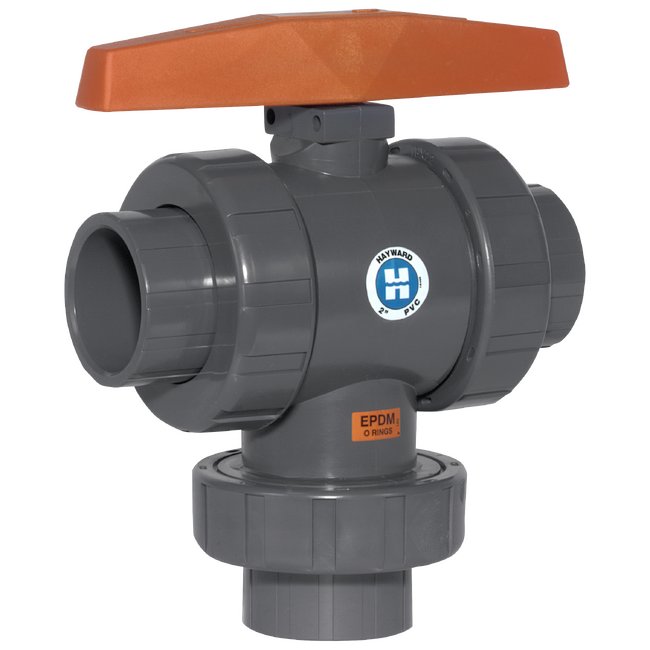

3/4" CPVC 3-Way True Union Ball Valve with EPDM Seals

Name: 3/4" CPVC 3-Way True Union Ball Valve with EPDM Seals
Brand: Hayward Flow Control
SKU: TRU-517dd5
Price: 24.99 USD
Availability: OutOfStock

SKU:TRU-517dd5

Durable 3/4" CPVC 3-Way True Union Ball Valve with EPDM Seals for versatile flow control. Socket/threaded ends.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4" CPVC 3-Way True Union Ball Valve with EPDM Seals from the TW Series is a versatile solution for multiple flow configurations. Made of CPVC with EPDM o-rings, this valve is rated @ 150PSI, ensuring durability and reliability. Featuring socket/threaded end connections, it offers seamless installation and flexibility. With precise dimensions and a Cv Factor of 7, this valve is engineered for optimal performance in various applications.

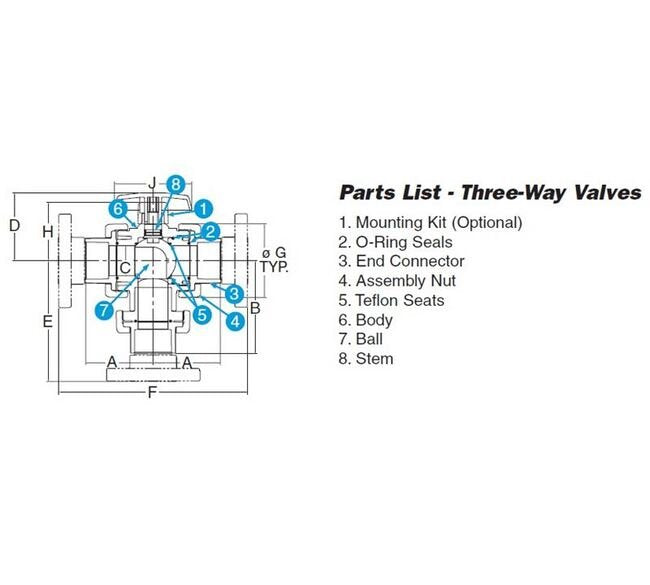

Product Specifications

Specifications A

2.62 in | 66.42 mm

Specifications B

3.57 in | 90.68 mm

Specifications Body Material

CPVC

Specifications C

0.75 in | 19.05 mm

Specifications Cv Factor

Specifications D

2.97 in | 75.44 mm

Specifications E

4.60 in | 116.84 mm

Specifications End Connection

Socket/Threaded

Specifications F

7.50 in | 190.50 mm

Specifications G

2.63 in | 66.80 mm

Specifications H

2.82 in | 71.63 mm

Specifications J

3.50 in | 88.90 mm

Specifications Seals

EPDM

Specifications Size

3/4"

3/4" CPVC 3-Way True Union Ball Valve with EPDM Seals
