3/4" CPVC Duplex Basket Strainer with FPM O-rings, Flanged End Connections
3/4" CPVC Duplex Basket Strainer with FPM O-rings, Flanged End Connections
SKU:PRI-e36962
3/4" CPVC Duplex Basket Strainer for efficient pipeline protection and maintenance. Ideal for institutional use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
3/4" CPVC Duplex Basket Strainer with FPM O-rings, Flanged End Connections
$129.99
Quantity: 1
Claim Your Seller Account
3/4" CPVC Duplex Basket Strainer with FPM O-rings, Flanged End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DB Series Duplex Basket Strainer in 3/4" CPVC with FPM O-rings and flanged end connections is a robust solution to protect pipeline components from debris. This Hayward strainer features an ergonomic hand-removable cover, uninterrupted flow, and integral flat mounting bases for easy maintenance. With options like stainless steel baskets and valve automation, this strainer offers versatility for various system requirements. Operating at a maximum pressure of 10 bar | 150 psi, it ensures efficient filtration without disrupting the system, making it ideal for institutional applications.
Product Specifications
Accessories Accessories
Wide range of accessoriesPrinter supports: stands (stainless steel or aluminum), table or wall mounting bracketsPrinthead supports: stand (stainless steel) and choice of bracketsPhotocellsEncodersAlarm beacons (24 V)Set of pre-cabled connectors M12, Ethernet IP66
Additional Information Additional Information

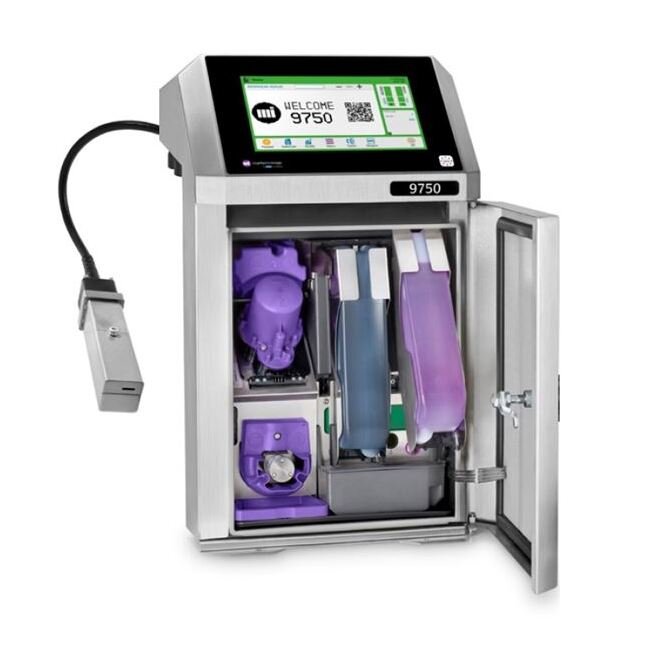

Meticulously engineered and qualified by the most modern methods, the 9750's latest enhancements bring you:Technology leaps grounded in time-tested industrial processes for maximized uptime, reduced maintenanceCutting-edge design with simplified UI and modular components for easy operation, maintenance or repairClear, customizable, traceable codes that meet customers' growing demand for supply chain visibility
Key Benefits Key Benefits
InnovationAdvanced R&D backed by proven industrial processes and methodsIntelli'Inks system ensures optimal coder performance and flexibility when coding different package materials.Intelli'Swap technology streamlines mechanicals down to swappable modules.Jet Speed Control technology automatically adjusts ink and printer variables to ensure drop placement, quality and code consistence. Every time.SustainabilityMore sustainable solutions = Long-term value and lower TCOIntelli'Swap modularity enables you swap out only the individual parts that need to be replaced and not the entire blockIntelli'Design process and a portfolio of rigorously developed ink formulations help reduce consumable consumption and VOC emissions by up to 50% while improving operator safety, well-being and TCOConsumable-saving mode additionally reduces consumption and wasteDigitalizationConvenience only a couple clicks awayRemote services, including remote diagnostics, allow for a predictive analysis and therefore help maximize uptime, achieve OEE objectivesConsumable and spare part supply through online portalQuick customizable 24-pin interface allows for easy integration in a 4.0 connected environment
Operations Operations
WYSIWYG 10-inch capacitive color touchscreen: real-time display of remaining print capacity expressed in hours and number of messages; integrated assistance and alert system; simplified message printing and management; creation of user profiles; tracking of consumption and printer availabilityMessage library (up to 1,000 messages)Automatic selection of fonts, depending on print speed and printhead/object distanceSpecific date management (rounding date function)Parent/child connectivityJet Speed Control guarantees marking qualityPrinthead with embedded intelligence for high marking quality and reduced maintenanceBroad range of inks: multi-use, high performance; alcohol based, ketone-free and MEK-free inksSealed 0.8-liter cartridges with fool proofing systemCompact and modular ink circuit for better thermal management and controlled additive consumption100% front access modular ink circuit for a simplified preventive maintenanceRemote Services including MI Virtual Assistant for 24/7 self-troubleshooting and âhow toâ videosQuick connect/disconnect of accessories (photocell, alarm and encoder)Enhanced native connectivity including USB, Ethernet, serial and a configurable M12 connector for I/O
Options Options
Ultra-flexible 6-meter umbilical cableIP66 protection (plant air required)TCO option for lower additive consumption: at 20 ºC less than 3,5 cc/h for MEK-based ink or less than 2cc/h for MEK-free inkPrinthead pressurization kitMany I/O possibilities including a configurable single point connector (24 pins)
Other Characteristics Cabinet And Printed Case Material
Stainless Steel
Other Characteristics Cable
Ultra-Flexible 3-Meter Umbilical
Other Characteristics Dustwater Ingress Protection Rating
Ingress Protection (IP) 56 Requiring No Plant Air
Other Characteristics Electrical Power Supply
100 to 240 V | 1.6 A
Other Characteristics Frequency
50 Hz | 60 Hz
Other Characteristics Humidity
10 to 90% Non-Condensing
Other Characteristics Mounting
Table-Top | Vertical
Other Characteristics Operating Temperature
32 to 122 ºF | 0 to 50 ºC
Other Characteristics Weight
25 kg
Print Features Character Height
1.2 to 11.2 mm
Print Features Font Height
5 to 32 dots
Print Features G Head Printing Resolution
71 dpi
Print Features M Head Printing Resolution
115 dpi
Print Features Number Of Lines Per Print
Up to 5 Lines
Print Features Print Head
Mono-Jet
Print Features Print Speed
0 to 6.6 m/s
Print Features Wide Choice Of 1d And 2d Barcodes
Code 39 | Datamatrix | Dotcode | EAN 8/EAN 13/UPCA /UPCE Barcodes | Interleaved 2 of 5 | QRcode
Print Features Wide Choice Of Characters
Arabic | Chinese | Cyrillic | etc. | Hebrew | Japanese | Korean | Latin
Remote Services Remote Services
Miva, intelligent self-support solutionLive helpdesk support with remote video capabilitiesConnected Devices Services, based on a secured IoT cloud infrastructure (check availability in your country)
Software Software
Fully compatible with CoLOS Version 6.3 Service Pack onwardsLogo creation with CoLOS® Graphics software
