3/4 CPVC True Union Ball Valve with Flanged End Connections
3/4 CPVC True Union Ball Valve with Flanged End Connections
SKU:TRU-9ddd96
Premium 3/4 CPVC True Union Ball Valve for sodium hypochlorite applications with FPM o-rings, flanged end connections, and venting capability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
3/4 CPVC True Union Ball Valve with Flanged End Connections
$39.99
Quantity: 1
Claim Your Seller Account
3/4 CPVC True Union Ball Valve with Flanged End Connections
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

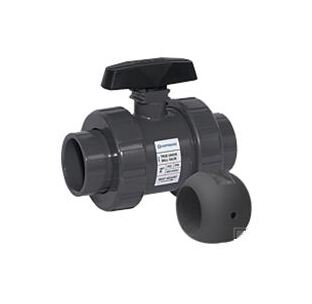

The TBZ Series 'Z-Ball' 3/4 CPVC True Union Ball Valve with FPM o-rings is designed for superior performance in sodium hypochlorite applications. Featuring a drilled ball for venting, this valve ensures efficient operation and longevity. With a pressure rating of 250 PSI for sizes 1/4 in. to 2 in., 235 PSI for 2-1/2 to 4 in., and 150 PSI for 6 in. flanged ends, it provides robust and reliable service. The CPVC construction and FPM o-rings guarantee durability and chemical resistance, making it ideal for industrial and institutional use. Socket and threaded end connections are available for sizes up to 2 in., offering flexibility and ease of installation.
Product Specifications
Dimensional Attributes A
4.83 in
Dimensional Attributes B
0.75 in
Dimensional Attributes C
2.63 in
Dimensional Attributes D1
3.02 in
Dimensional Attributes D2
2.81 in
Dimensional Attributes F
7.23 in
Dimensional Attributes H
3 in
Specifications Body Material
CPVC
Specifications Cv Coefficient
16.0
Specifications End Connection
Flanged
Specifications Flow Configuration
Bi-directional
Specifications Seals
FPM
Specifications Series
TBZ
Specifications Size
3/4"
Specifications Weight
1.00 lb
