3/4" DC Linear Variable Differential Transformer (LVDT) Sensor

Name: 3/4" DC Linear Variable Differential Transformer (LVDT) Sensor
Brand: Alliance Sensors Group
SKU: DCT-d254ff
Price: 129.99 USD
Availability: OutOfStock

SKU:DCT-d254ff

Get precise measurements with Alliance Sensors Group's 3/4" DC LVDT Sensor. Ideal for institutional and industrial use.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

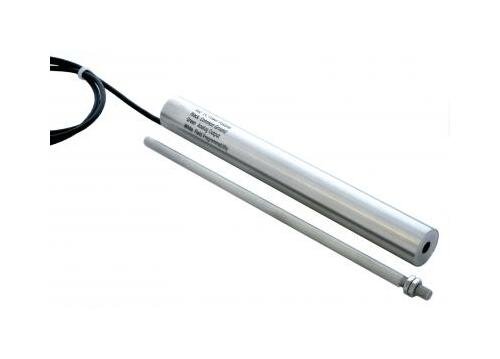

The 3/4-inch outside diameter DC Linear Variable Differential Transformer (LVDT) Sensor by Alliance Sensors Group is a precise replacement sensor designed for applications requiring a 0.500-inch stroke and 0 to 10 Volt output. With a durable stainless steel body, this sensor ensures accurate measurements in extreme temperatures ranging from -40 to 105 ºC. It boasts a linearity of <0.25% of full scale, 0.025% resolution, and an update rate of 300 Hz, making it perfect for industrial and institutional use. CE approved and featuring a 1m cable termination, this sensor offers reliable performance for a wide range of applications.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Axial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

3/4 in

Technical Specs Range

0.500 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

0.500 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Termination

1 m Cable

Technical Specs Update Rate

300 Hz
