3/4" Eastar Simplex Basket Strainer with FPM Seal
3/4" Eastar Simplex Basket Strainer with FPM Seal
SKU:STR-44feb0
Efficiently remove dirt and debris with the 3/4" Eastar Simplex Basket Strainer with FPM Seal. Ideal for pipeline protection. Eastar body, socket/threaded connections, 1/32" perforation. Meets key industry standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3/4" Eastar Simplex Basket Strainer with FPM Seal
$89.99
Quantity: 1
Claim Your Seller Account
3/4" Eastar Simplex Basket Strainer with FPM Seal
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/4" Eastar Simplex Basket Strainer with FPM Seal, part of the SB Series, is designed to protect pipeline system components by efficiently removing dirt and debris. With a durable Eastar body and FPM seal, this strainer offers reliable performance. Featuring socket/threaded end connections, a standard basket perforation of 1/32", and a flow coefficient of 18.0, this strainer ensures smooth flow while trapping unwanted particles. This Hayward Thermoplastic Strainer is rated at 100psi, meeting essential industry standards for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

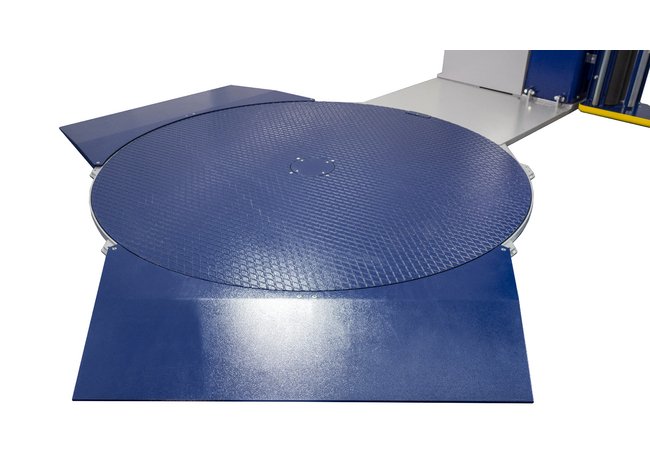

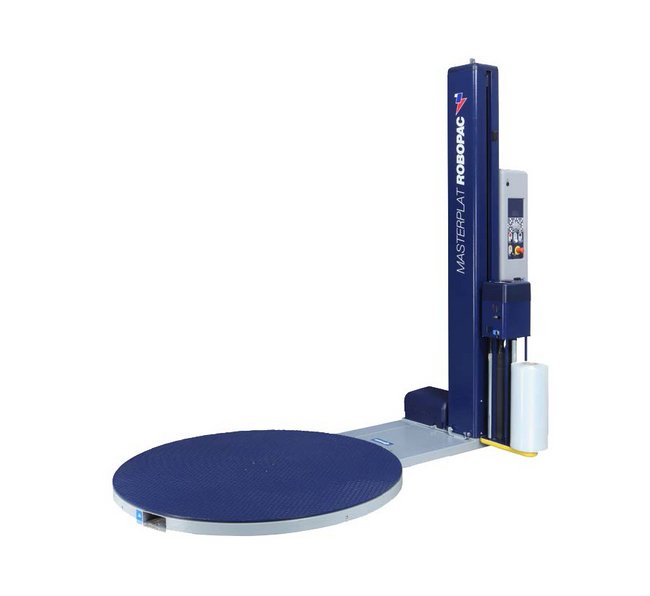

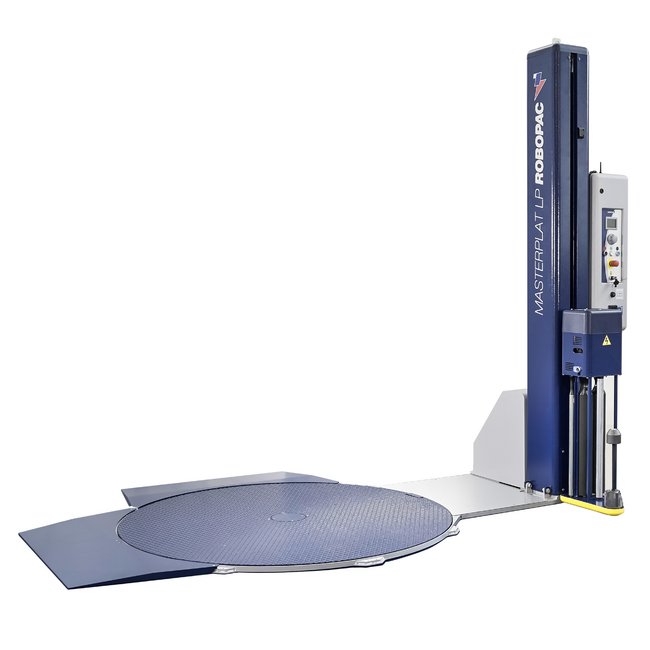

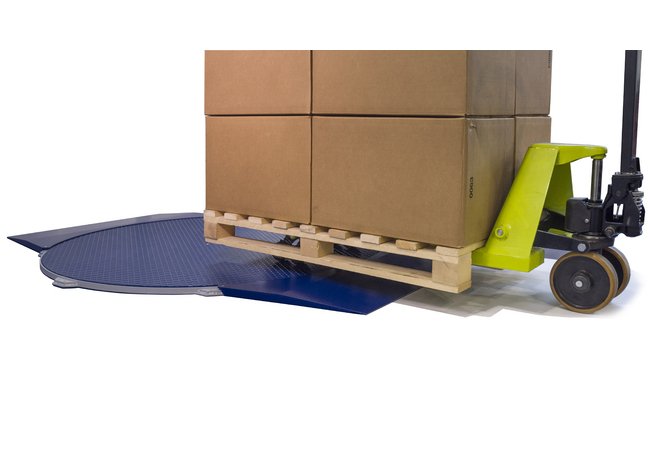

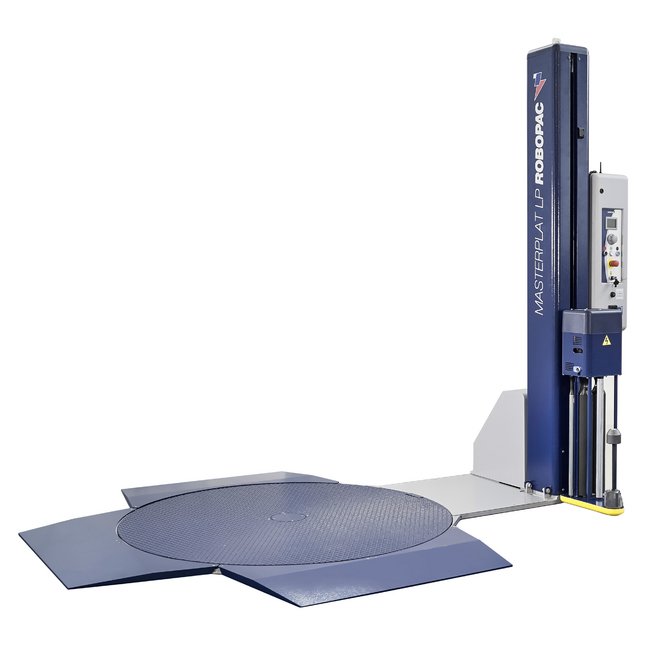

The Masterplat turntable is supported by 28 heavy-duty casters and can handle a 4,400 lb load. Weight capacity can be increased quickly and easily to 5,500 lbs.The Masterplat was designed for the demanding American customer. It includes many performance and application features that are either extra cost or not available on stretch wrapping machines from other manufacturers.A scale package option is available to weigh your wrapped pallet while still on the turntable, providing shipping data without having to relocate the load.
Additional Technical Features Banding
Standard
Additional Technical Features Forklift Portable
Front and Rear
Control Panel Control Panel
The new Masterplat control panel combines the Master Jog Dial and a graphic display with intuitive icons, making set-up simple and selecting the correct wrapping parameters for each of your loads a snap.The Masterplat control panel is UL508A Certified. The NEMA 12 Control Panel Enclosure protects against dust, dirt, fibers and lint. It also protects from dripping water, external condensation and other noncorrosive liquids.Memory allows you to store up to three custom programs and comes pre-programmed with:Up/Down CycleUp Only or Down Only CycleTop Sheet CycleManual CycleEco Cycle
Film Carriage Film Carriage
Masterplat Power Pre-stretch Carriage (PGS)The PGS 250% fixed pre-stretch roll carriage can also be delivered with either a 200% or 350% pre-stretch ratio with manually interchangeable gears. The PGS carriage is equipped with the patented "QLS" system (Quick Load System) to quickly load film between the rollers and a film unwinding button for film feed when hooked to the product to be wrapped.Robopac®'s patented high-performance S-Wrap Pattern with and load cell corner compensation and containment force device give you very consistent and predictable prestretch and total control of containment force.
Film Delivery System Technical Features Containment Force
Adjustable Force Control | Variable Electronic
Film Delivery System Technical Features Film Delivery System
Power Pre-Stretch
Film Delivery System Technical Features Force To Load Control
Mechanical on Carriage
Film Delivery System Technical Features Load Height Detection
Infrared Photocell
Film Delivery System Technical Features Roll Carriage Speed
Variable Up and Down
Film Delivery System Technical Features Standard Film Width
20 in
Film Delivery System Technical Features Standard Pre Stretch
250 %
Load Handling Technical Features Diamond Plate Steel Turntable C
3/8 in
Load Handling Technical Features Diamond Plate Turntable Diamete
65 in
Load Handling Technical Features Maximum Load Height
110 in
Load Handling Technical Features Maximum Load Length
52 in
Load Handling Technical Features Maximum Load Weight
4,400 lb
Load Handling Technical Features Maximum Load Width
52 in
Performance Technical Features Alternating Current Ac Voltage Fo
1 hp
Performance Technical Features Production Speed
0 to 40 L/h
Performance Technical Features Turntable Height
3 in
Performance Technical Features Turntable Speed
5 to 12 rpm
Popular Options Popular Options
Scale PackageBuilt-in 5,000 lb capacity scale system allows you to wrap and weigh your loads in one easy step. Integrated design increases the height of the turntable by less than 1".Our scale is NIST Certified and comes pre-calibrated. It includes a digital readout.Heavy-Duty SupportAdditional rollers allow the turntable to support heavier loads to 5,500 lb. Strategic placement keeps turntable top from buckling and reduces wear on parts.Roping DeviceRoping device attached to roll carriage ropes the entire web of film from either top, bottom or both. Manual device is set before wrapping.Roping from the top allows you to apply a high tensile strength rope of film to the pallet wherever it is needed to improve load integrity. Full web film roping is the best way to lock the load to the pallet.
Safety Technical Features Anti Fall Device
Standard
Safety Technical Features European Conformity Ce Compliant
Yes
Safety Technical Features Lock Outtag Out Compliant
Yes
Safety Technical Features Roll Carriage Safety Stop
Standard
Service Requirements Technical Features Alternating Current Ac V
110 V
Service Requirements Technical Features Charger Requirement Freq
60 Hz
Service Requirements Technical Features Charger Requirement Phas
1
Service Requirements Technical Features Charger Requirement Tole
10 %
Service Requirements Technical Features National Electrical Manu
Standard
Service Requirements Technical Features Warranty
5 years
Specifications Alternating Current Ac Voltage For Chain Driven F
1/2 hp
Specifications Available Options
Extended Warranty | Ramp
Specifications Color Graphic Display Control Panel
3.5 in
Specifications Height Sensing
Automatic via Photocell
Specifications Standard Wrap Height
110 in
Utility Requirements Voltage
115 V
