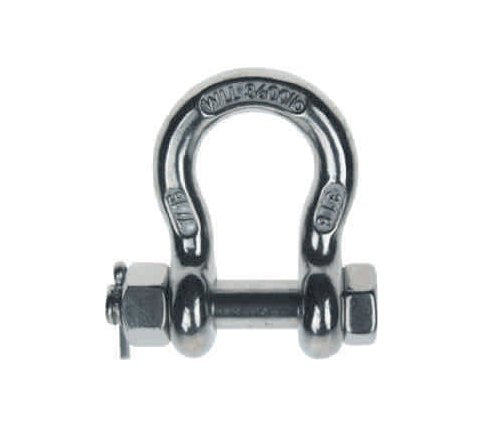

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

SKU:WIR-fd6193

High-strength 3/4 in T-316 Stainless Steel Anchor Shackle for industrial and government use. Exceeds federal specs with 6,000 lb WLL.

Regular price $64.99
Regular price Sale price $64.99
Sale

Initiate Order

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

$64.99

Quantity: 1

Claim Your Seller Account

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

3/4 in T-316 Stainless Steel Load Rated Bolt Pin Anchor Shackle

$64.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4 Inch T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is engineered to meet the demanding needs of industrial and government applications. Crafted from high-quality T-316 stainless steel, this shackle offers exceptional strength and durability. With a Working Load Limit (WLL) of 6,000 lb and a breaking strength four times that, it surpasses federal specifications such as RR-C-271D, Type IV A, Class 3. This anchor shackle is designed for reliability and safety, making it ideal for critical lifting and rigging operations.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

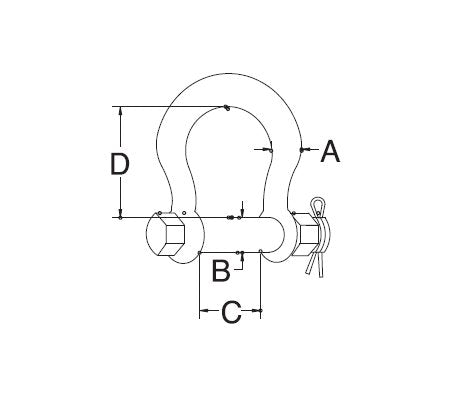

Specifications Dimension A
3/4 "
Specifications Dimension B
7/8 "
Specifications Dimension C
1-3/16 "
Specifications Dimension D
2-7/8 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
2.30 lb
Specifications Wll
6,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
