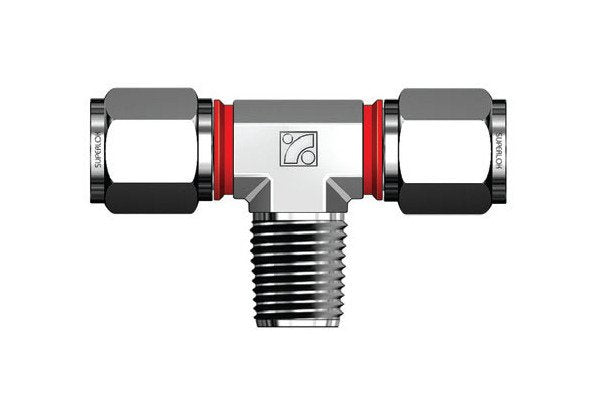

3/4 in Tube OD Male Branch Tee Fitting, NPT Thread, Alloy Steel
3/4 in Tube OD Male Branch Tee Fitting, NPT Thread, Alloy Steel
SKU:SMB-c3b227
Precision 3/4 in Tube OD Male Tee Fitting for secure and efficient NPT connections in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
3/4 in Tube OD Male Branch Tee Fitting, NPT Thread, Alloy Steel
$34.99
Quantity: 1
Claim Your Seller Account
3/4 in Tube OD Male Branch Tee Fitting, NPT Thread, Alloy Steel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMBTI Series 3/4 in Tube OD Male Branch Tee Fitting features a durable construction with Alloy 625, 825, C-276, and other high-quality materials. Its innovative i-Fitting design ensures precise compression, enhancing safety in high-pressure environments. This fitting provides superior productivity, cost savings, and industry compliance, making it an ideal choice for connecting fractional tubes to female NPT threads.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

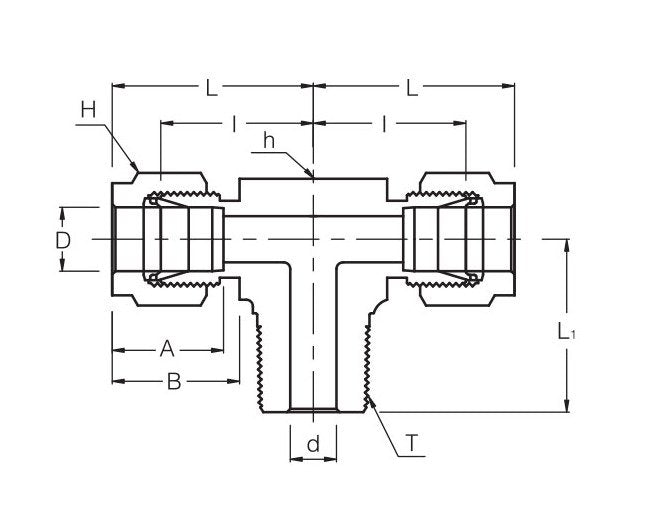

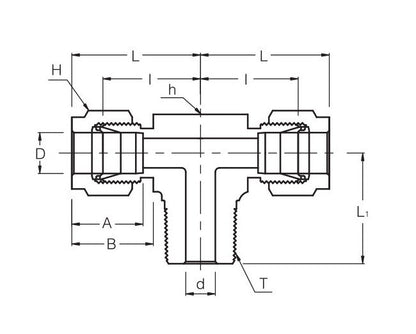

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Dimension L1
36.83 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
