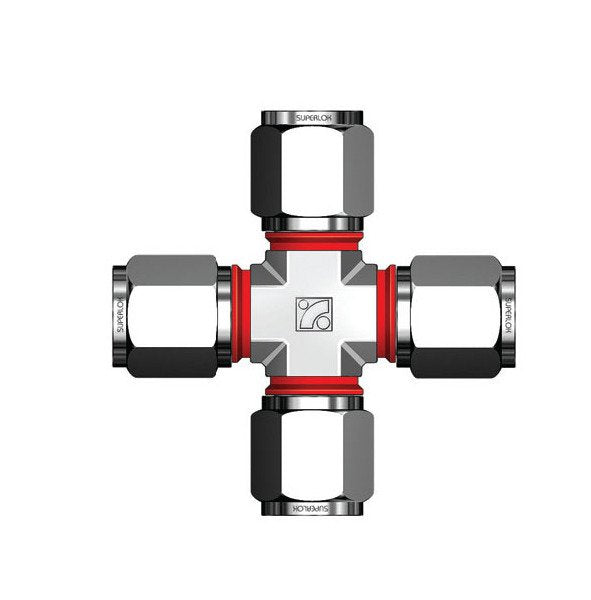

3/4 in Tube Outside Diameter Union Cross Fitting
3/4 in Tube Outside Diameter Union Cross Fitting
SKU:SUC-44cc1d
High-quality 3/4in Union Cross Fitting for precise fractional tube connections, featuring patented i-Fitting® components for enhanced safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/4 in Tube Outside Diameter Union Cross Fitting
$29.99
Quantity: 1
Claim Your Seller Account
3/4 in Tube Outside Diameter Union Cross Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUCI Series 3/4 inch Union Cross Fitting is engineered to connect fractional tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability and resistance to harsh environments. Featuring patented i-Fitting® components, it offers seamless installation, increased safety in high-pressure settings, and enhanced productivity. With dimensions meeting industry standards and innovative design elements like the built-in gap gauge check ring, this fitting is a game-changer for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

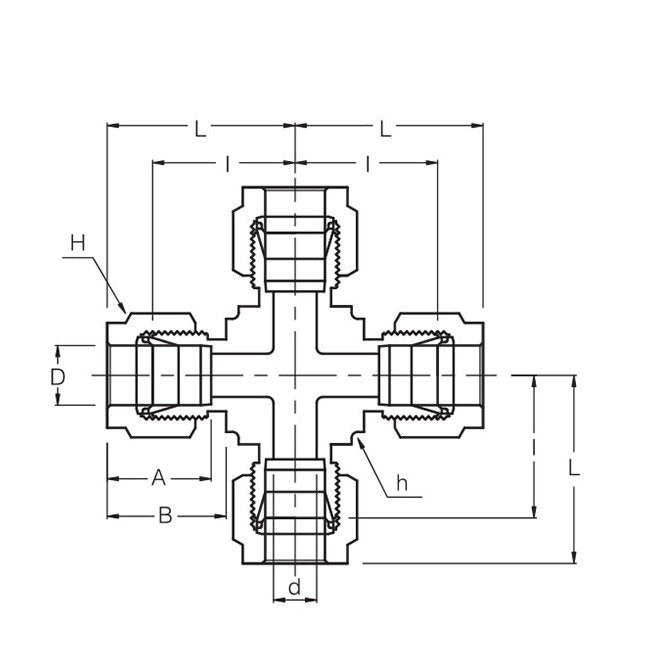

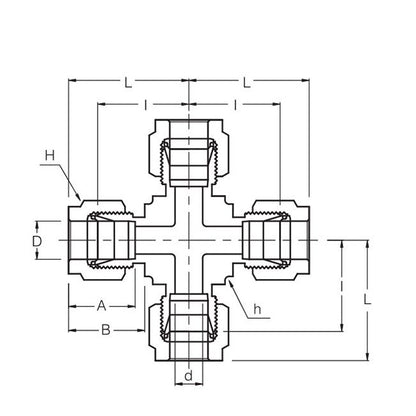

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
