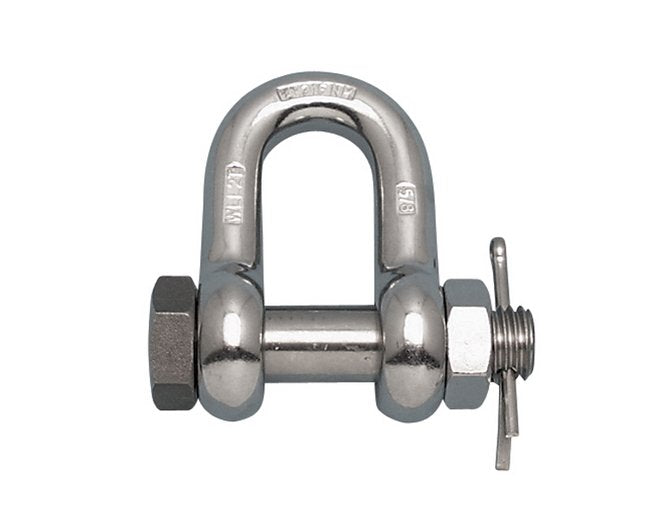

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

SKU:WIR-376802

Premium 3/4 Inch Stainless Steel Chain Shackle for heavy-duty applications. Drop Forged, 6,000 lb WLL, RR-C-271F compliant.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

$29.99

Quantity: 1

Claim Your Seller Account

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin is a premium solution for heavy-duty chain applications. Crafted from high-quality 316-NM stainless steel, this shackle offers exceptional strength and corrosion resistance. Its oversized screw pin ensures secure fastening, while the drop-forged construction guarantees reliability under extreme loads. With a working load limit of 6,000 lb, this shackle is ideal for industrial and marine environments. Compliant with federal specification RR-C-271F, type IVB, class 2 standards, marking to the nearest fractional ton.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 2, (except 316 stainless steel). Marked to the nearest fractional ton.

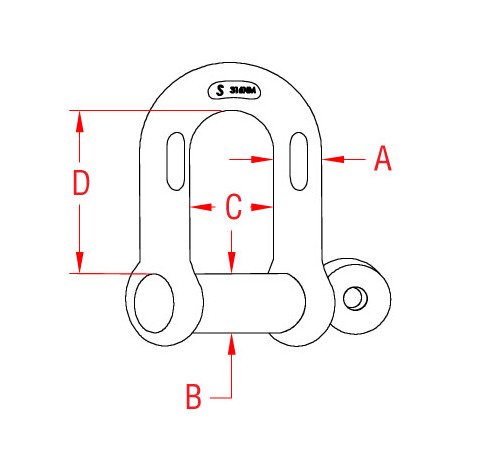

Specifications Applications
Chain
Specifications C
1.20 "
Specifications D
2.40 "
Specifications Dimension B
0.88 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
3/4 "
Specifications Weight
2.13 lb
Specifications Wll
6,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
