3/4 Inch 316-NM Stainless Steel Shackle Bolt

3/4 Inch 316-NM Stainless Steel Shackle Bolt

SKU:WIR-9c3b03

Dependable 3/4 Inch 316-NM Stainless Steel Shackle Bolt for secure lifting and towing applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

3/4 Inch 316-NM Stainless Steel Shackle Bolt

3/4 Inch 316-NM Stainless Steel Shackle Bolt

$29.99

Quantity: 1

Claim Your Seller Account

3/4 Inch 316-NM Stainless Steel Shackle Bolt

3/4 Inch 316-NM Stainless Steel Shackle Bolt

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

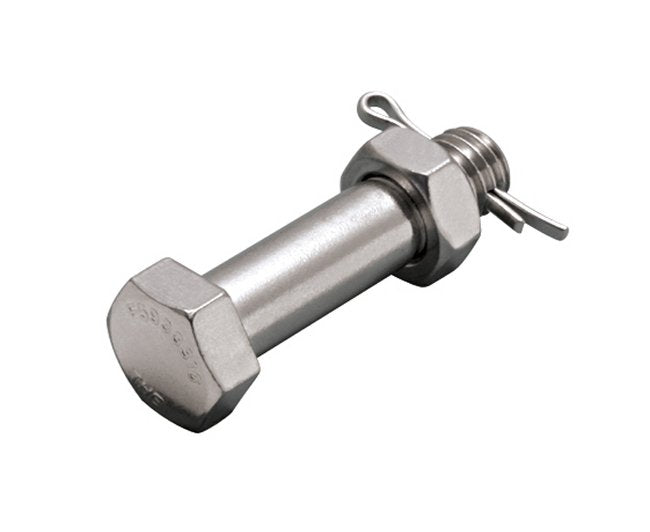

The 3/4 Inch Size 316-NM Stainless Steel Shackle Bolt is a dependable wire rope hardware essential suitable for lifting and towing applications. Precision-crafted from high-quality 316-NM stainless steel, this drop-forged bolt is load-rated and compatible with both chain and anchor shackle bodies. With a working load limit of 6,000 lb, this bolt includes a cotter pin and nut for secure installation. Trust this import-grade shackle bolt for reliable performance in demanding environments.

Product Specifications

Note 0
Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

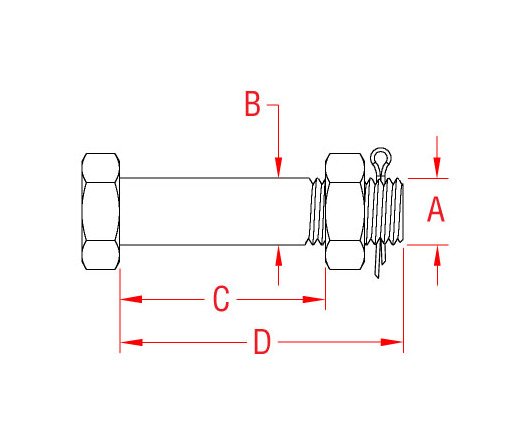

Specifications C
2.63 "
Specifications D
3.69 "
Specifications Dimension A
7/8 in.-9
Specifications Dimension B
0.88 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size
3/4 "
Specifications Weight
0.91 lb
Specifications Wll
6,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
