3/4 Inch 316-NM Stainless Steel Shackle Pin

Name: 3/4 Inch 316-NM Stainless Steel Shackle Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-a36ed5
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-a36ed5

Premium 3/4 Inch Stainless Steel Shackle Pin for heavy-duty use, Made in USA

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

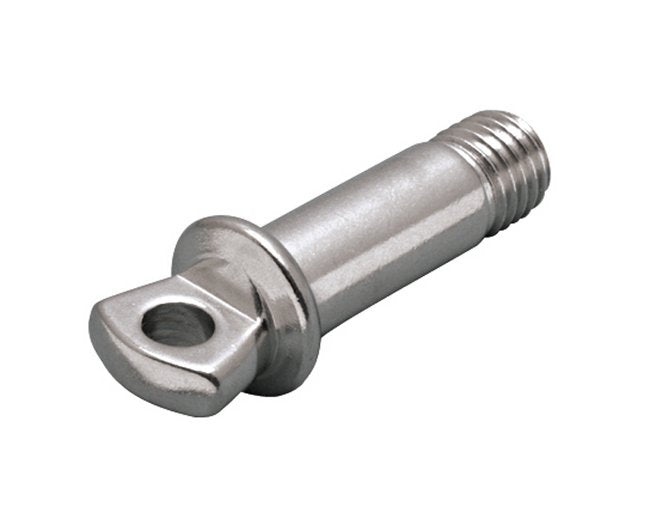

The 3/4 Inch 316-NM Stainless Steel Shackle Pin is a precision-machined replacement pin designed for chain shackles (S0115-FS) and anchor shackles (S0116-FS). Made in the USA, this pin is load-rated and constructed from durable 316-NM stainless steel, ensuring reliable performance under heavy loads. With a Working Load Limit (WLL) of 6,000 lb, this shackle pin is ideal for industrial and commercial applications requiring strength and corrosion resistance.

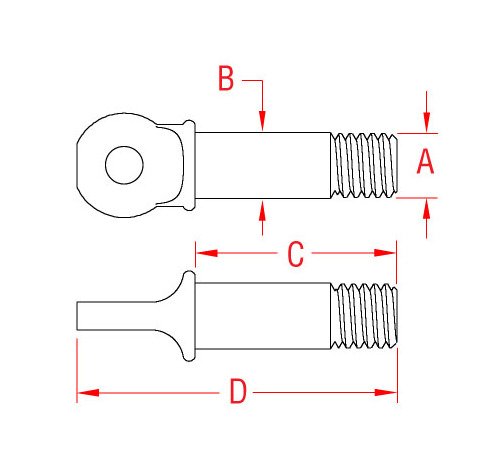

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

Specifications C

2.80 "

Specifications D

3.87 "

Specifications Dimension A

7/8 in.-9

Specifications Dimension B

0.88 "

Specifications Key Features

Load Rated | Made in USA | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

3/4 "

Specifications Weight

0.61 lb

Specifications Wll

6,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

3/4 Inch 316-NM Stainless Steel Shackle Pin
