3/4 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

Name: 3/4 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-92c904
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-92c904

Heavy-duty 3/4" 316-NM Stainless Steel US Anchor Shackle for secure lifting and towing applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

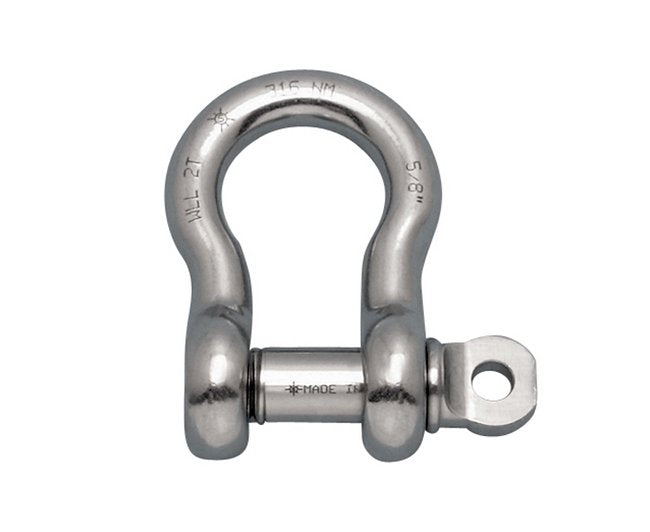

The 3/4 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin is a heavy-duty, reliable solution for lifting or towing applications. This drop-forged shackle is load-rated and made in the USA, meeting stringent federal specifications RR-C-271F, ASME B30.26-2004, and DFARS compliance requirements. With a Working Load Limit of 6,000 lb, this shackle is ideal for anchor use, providing durability and safety in critical operations.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Meets ASME B30.26-2004 American National Standard. DFARS compliant shackles. S0116-NM nitronic anchor shackles also available.

Specifications Applications

Anchor

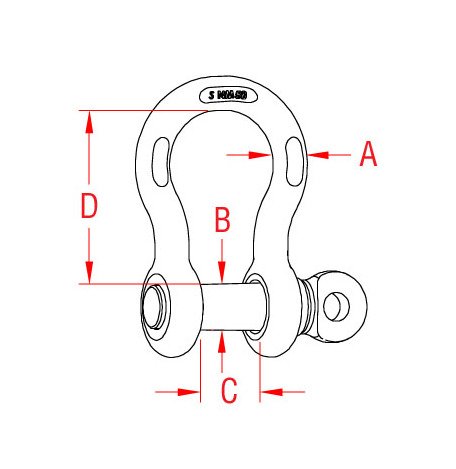

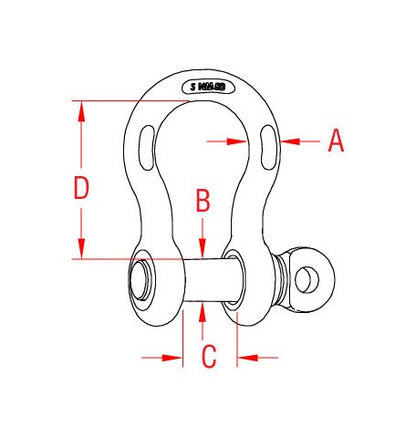

Specifications C

1.25 "

Specifications D

2.84 "

Specifications Dimension B

0.88 "

Specifications Key Features

Drop Forged | Load Rated | Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Size A

3/4 "

Specifications Weight

2.31 lb

Specifications Wll

6,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340
