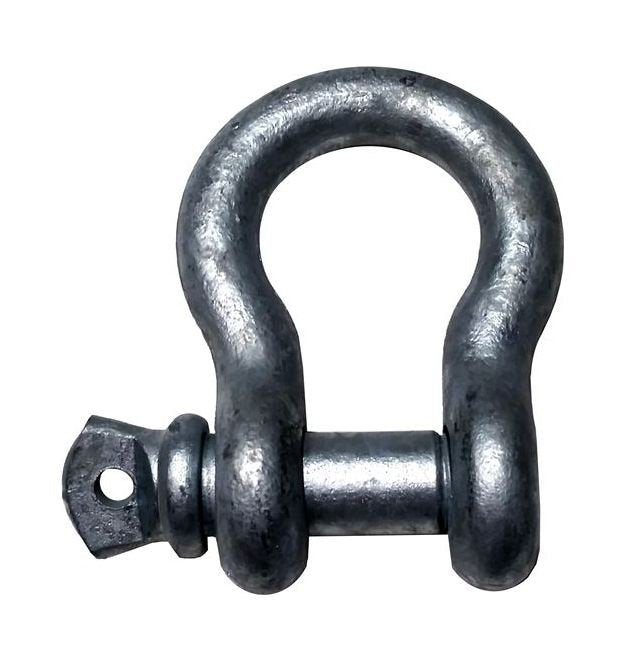

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

SKU:WIR-8c9574

High-quality 3/4" Anchor Shackle Screw Pin Galvanized Drop Forged with superior load capacities. Conforms to Federal Specs for reliability.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

$29.99

Quantity: 1

Claim Your Seller Account

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

3/4 Inch Anchor Shackles Screw Pin Galvanized Drop Forged

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4 Inch Anchor Shackles Screw Pin Hot Dip Galvanized Drop Forged is designed to meet the strict Federal Specification RR-C-271D, Type IV A, Grade A, Class 2 standards. Built with a quenched and tempered alloy pin, this shackle offers a high proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit. Ideal for lifting or towing applications, this durable shackle ensures safety and reliability in demanding environments.

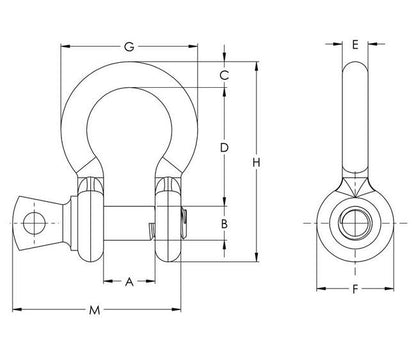

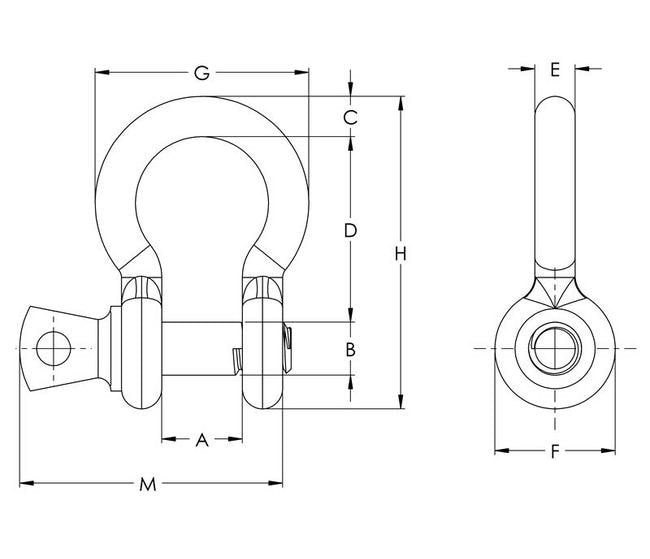

Product Specifications

Specifications A In
1.25
Specifications B In
0.88
Specifications C In
0.81
Specifications D In
2.81
Specifications E In
0.75
Specifications F In
1.81
Specifications G In
3.5
Specifications H In
4.97
Specifications M In
3.97
Specifications Nominal Size In
3/4
Specifications Weight Lbs
2.35
Specifications Wll Tons
4 3/4
CAGE
0T9L4
NAICS
332999
PSC
5340
