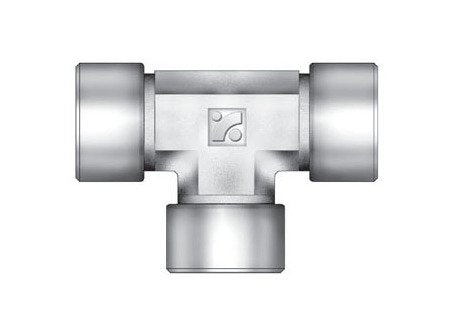

3/4 Inch Female Tee Fitting with NPT Threads

Name: 3/4 Inch Female Tee Fitting with NPT Threads
Brand: Superlok-Mako Products LLC
SKU: IFT-57c19c
Price: 29.99 USD
Availability: OutOfStock

SKU:IFT-57c19c

Industrial-grade 3/4 Inch Female Tee Fitting with NPT Threads for reliable pipe connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

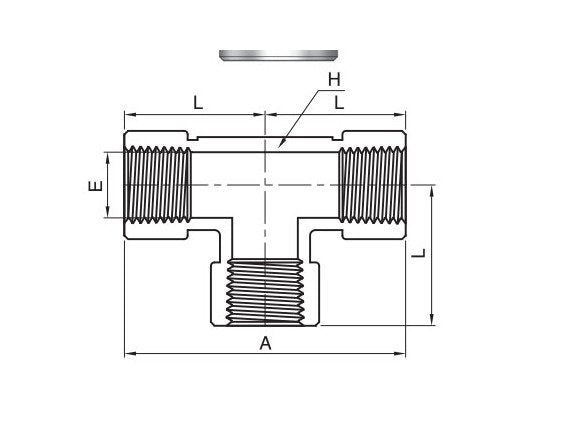

The IFT Series 3/4 Inch Female Tee Fitting is designed to meet the rigorous demands of industrial applications. Constructed from durable materials like 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures reliable performance. With National Pipe Thread (NPT) and female connection type, it offers easy installation. The precise dimensions (93.0mm A, 23.9mm E, 46.5mm L, 31.8mm H) and high-quality build make it a versatile choice for various pipe systems. Enjoy exceptional quality and compatibility with this reliable female tee fitting.

Product Specifications

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Connection Type

Female

Technical Specs Dimension A

93.0 mm

Technical Specs Dimension E

23.9 mm

Technical Specs Dimension H

31.8 mm

Technical Specs Dimension L

46.5 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size

3/4 in

Technical Specs Thread Type

National Pipe Thread (NPT)
