3/4 Inch High Flow Digital Control Valve - 60 Degree Angle Rigid Semi-Automatic No-Drip Tip

Name: 3/4 Inch High Flow Digital Control Valve - 60 Degree Angle Rigid Semi-Automatic No-Drip Tip
Brand: Northern Lights Industrial Supply
SKU: SAM-3ba081
Price: 189.99 USD
Availability: OutOfStock

SKU:SAM-3ba081

Precision dispensing with 3/4 Inch High Flow Digital Control Valve. Ideal for fleet services & mining. Maximum flow rate: 19 gpm.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

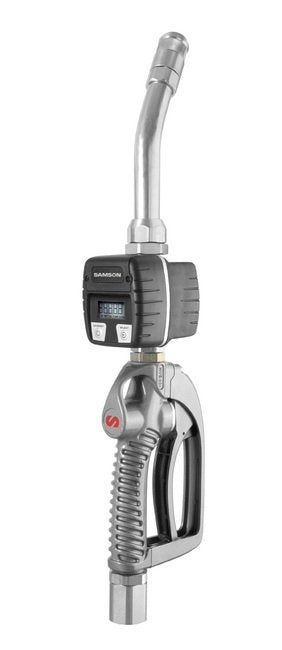

Ideal for precise dispensing, the EC19 Series 3/4 Inch High Flow Digital Control Valve features a 60-degree angle, ensuring accurate measurements of fluids like antifreeze solutions and oils. With a maximum free flow rate of 19 gpm and compatibility with various oils, this valve is perfect for fleet services, mining, and more. Constructed with durable materials and powered by 2 AAA batteries, it meets stringent industrial standards.

Product Specifications

Application Application

Fleet Service | Lube Trucks | Mining and Construction | Railroad and Mass Transit Vehicles | Truck Dealerships

Specifications Accuracy

0.5 %

Specifications Angle

60 Âº

Specifications Fluid Handled

Antifreeze Solutions | Automatic Transmission Fluid (ATF) | Gear Oil | Hydraulic Oil and Fluids | Synthetic and Mineral Based Oil

Specifications Fluid Inlet Thread Size

3/4 in | 1 in

Specifications Fluid Inlet Thread Type

National Pipe Taper Fuel (NPTF)

Specifications Fluid Outlet Thread Size

3/4 in

Specifications Fluid Outlet Thread Type

British Standard Pipe Fitting (BSPF)

Specifications Maximum Free Flow Rate

19 gpm | 70 L/min

Specifications Maximum Working Pressure

1,450 psi | 100 bar

Specifications Power Source

2 x "AAA" 1.5 Batteries

Specifications Turn Size

3/4 in

Specifications Wetted Materials

Acertal | Aluminum | Nitrile Butadiene Rubber (NBR) | Stainless Steel | Zinc Plated Steel

3/4 Inch High Flow Digital Control Valve - 60 Degree Angle Rigid Semi-Automatic No-Drip Tip
