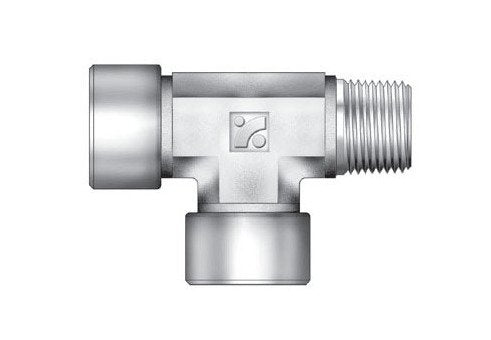

3/4 Inch IRT Series Run Tee Fitting with NPT Threads

Name: 3/4 Inch IRT Series Run Tee Fitting with NPT Threads
Brand: Superlok-Mako Products LLC
SKU: IRT-ab3d00
Price: 22.99 USD
Availability: OutOfStock

SKU:IRT-ab3d00

Durable 3/4 Inch Run Tee Fitting with NPT Threads for secure plumbing connections. Complies with industry standards.

$22.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The IRT Series 3/4 Inch Pipe Size Run Tee Fitting features male and female NPT threads, ensuring secure connections in plumbing systems. Crafted from high-quality materials like 316 stainless steel, brass, and carbon steel, this fitting offers durability and corrosion resistance. With precise dimensions meeting industry standards, this fitting is ideal for various applications, providing reliability and efficiency. It complies with Federal/DoD procurement standards, GSA requirements, FAR regulations, and industry-specific certifications.

Product Specifications

Note Note

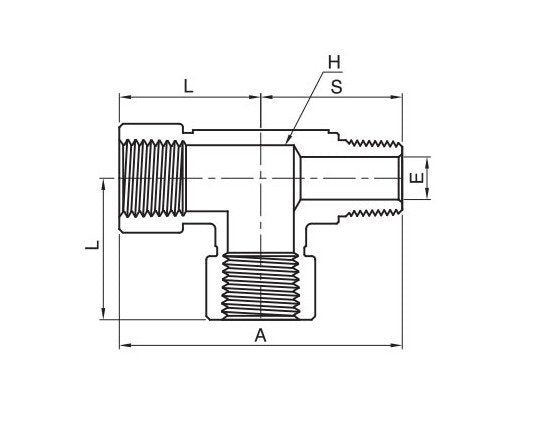

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Dimension A

86.1 mm

Technical Specs Dimension E

15.7 mm

Technical Specs Dimension H

31.8 mm

Technical Specs Dimension L

46.5 mm

Technical Specs Dimension S

39.6 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size

3/4 in

Technical Specs Thread Type

National Pipe Thread (NPT)

3/4 Inch IRT Series Run Tee Fitting with NPT Threads
