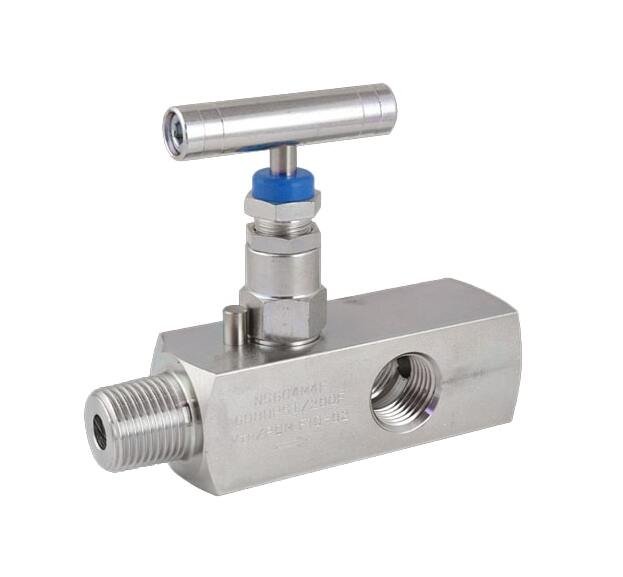

3/4 Inch Multi-Port Needle Valve - NPT Stainless Steel

Name: 3/4 Inch Multi-Port Needle Valve - NPT Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: MUL-73bcf0
Price: 79.99 USD
Availability: OutOfStock

SKU:MUL-73bcf0

High-performance 3/4 Inch Multi-Port Needle Valve with ASME compliant dimensions for precision control in demanding environments.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/4 Inch Multi-Port Needle Valve is built for precision and durability, featuring a Male x Female NPT thread type and a working pressure of 6000 psi. Crafted from high-grade stainless steel with a PolyOxyMethylene Soft Seat, this valve ensures reliable performance in critical applications. With dimensions meeting ASME standards, this valve guarantees a secure fit and seamless operation, making it ideal for industrial and institutional settings.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1

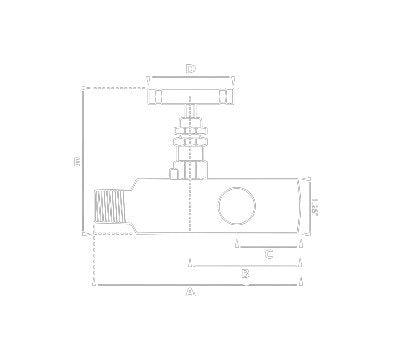

Technical Specs Dimension A

4.45 in

Technical Specs Dimension B

2.5 in

Technical Specs Dimension C

1.42 in

Technical Specs Dimension D

2.4 in

Technical Specs Dimension E

3.54 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant

Technical Specs Material

Stainless

Technical Specs Seat Material

PolyOxyMethylene (POM) Soft Seat

Technical Specs Thread Size

3/4 in

Technical Specs Thread Type

Male x Female National Pipe Thread (NPT)

Technical Specs Working Pressure

6000 psi

3/4 Inch Multi-Port Needle Valve - NPT Stainless Steel
